Tail Lamp Bulb Replacement

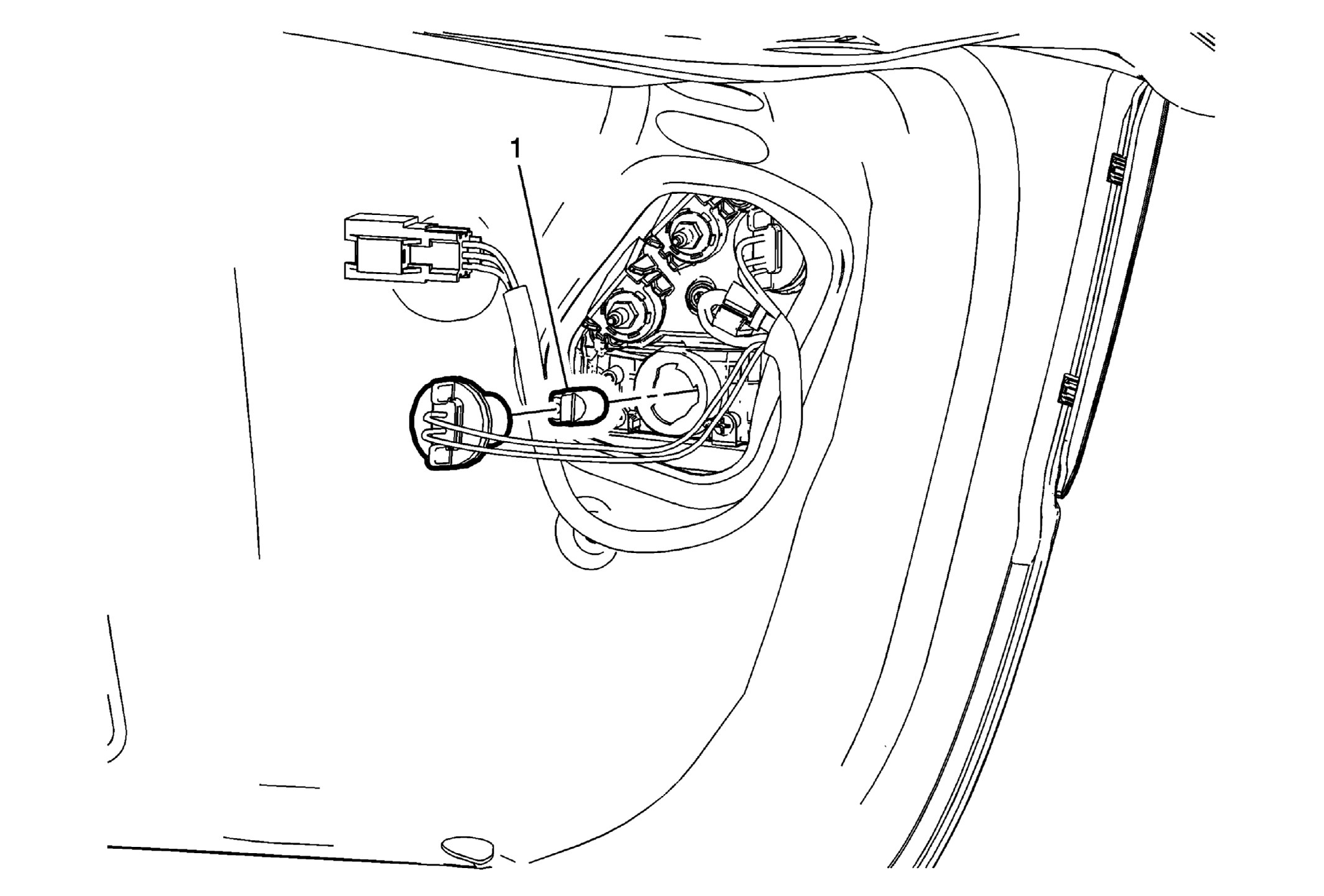

Fig 1: Tail Lamp Bulb

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear compartment lid carpet. Refer to Rear Compartment Lid Carpet Replacement .
1	Tail Lamp Bulb Procedure Rotate tail lamp bulb socket counterclockwise and pull from the tail lamp. Pull tail lamp bulb straight out from the tail lamp bulb socket.

Callout

Component Name

Preliminary Procedure
Remove the rear compartment lid carpet. Refer to Rear Compartment Lid Carpet Replacement .

Tail Lamp Bulb

Procedure
