Instrument Panel Compartment Lamp Replacement
Instrument Panel Compartment Lamp Replacement

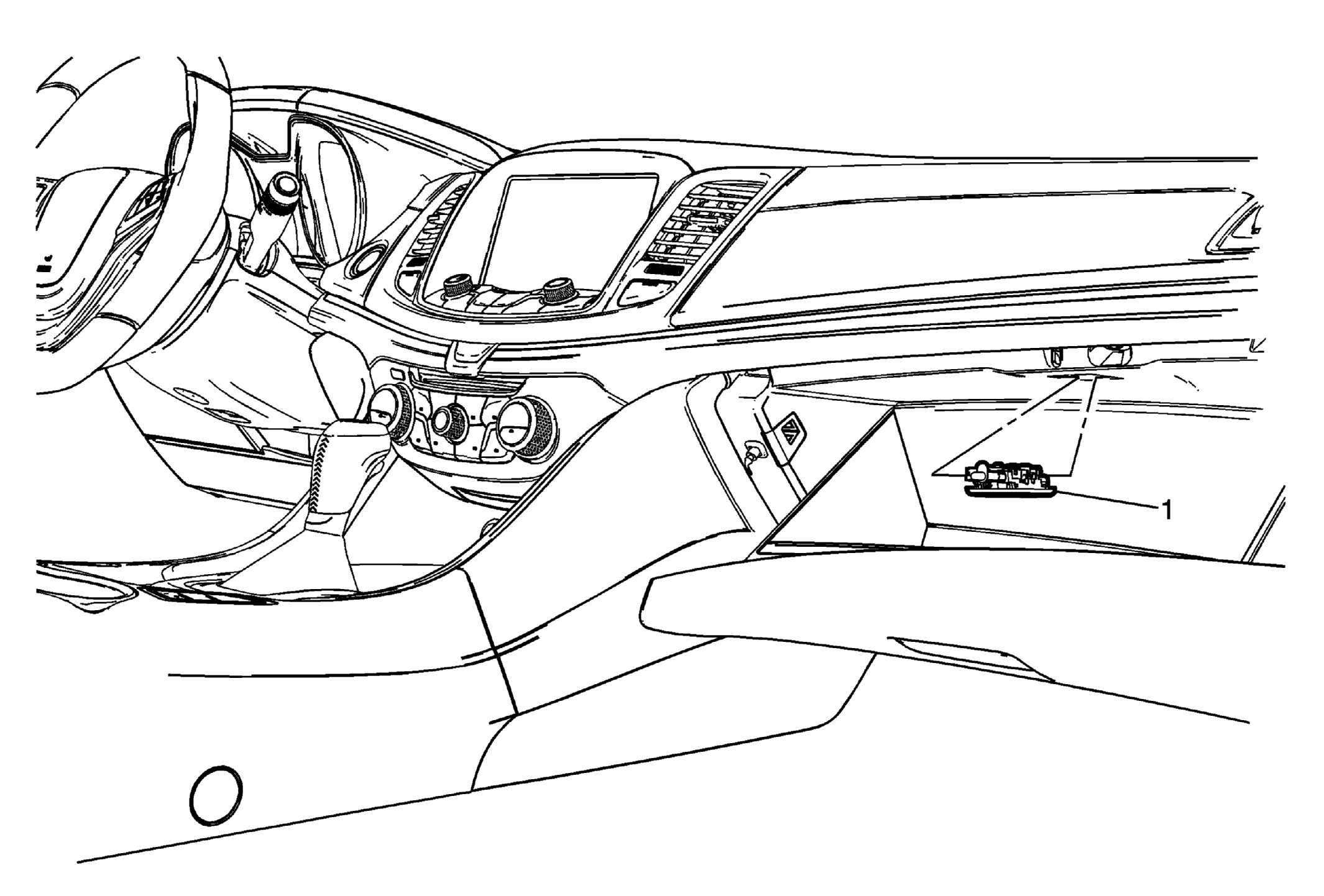

Fig 1: Instrument Panel Compartment Lamp
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Instrument Panel Compartment Lamp
Procedure
Open the compartment door and using a plastic flat bladed trim tool release the lamp assembly from the instrument panel compartment.
Disconnect the electrical connection.
