High Beam Headlamp Bulb Replacement

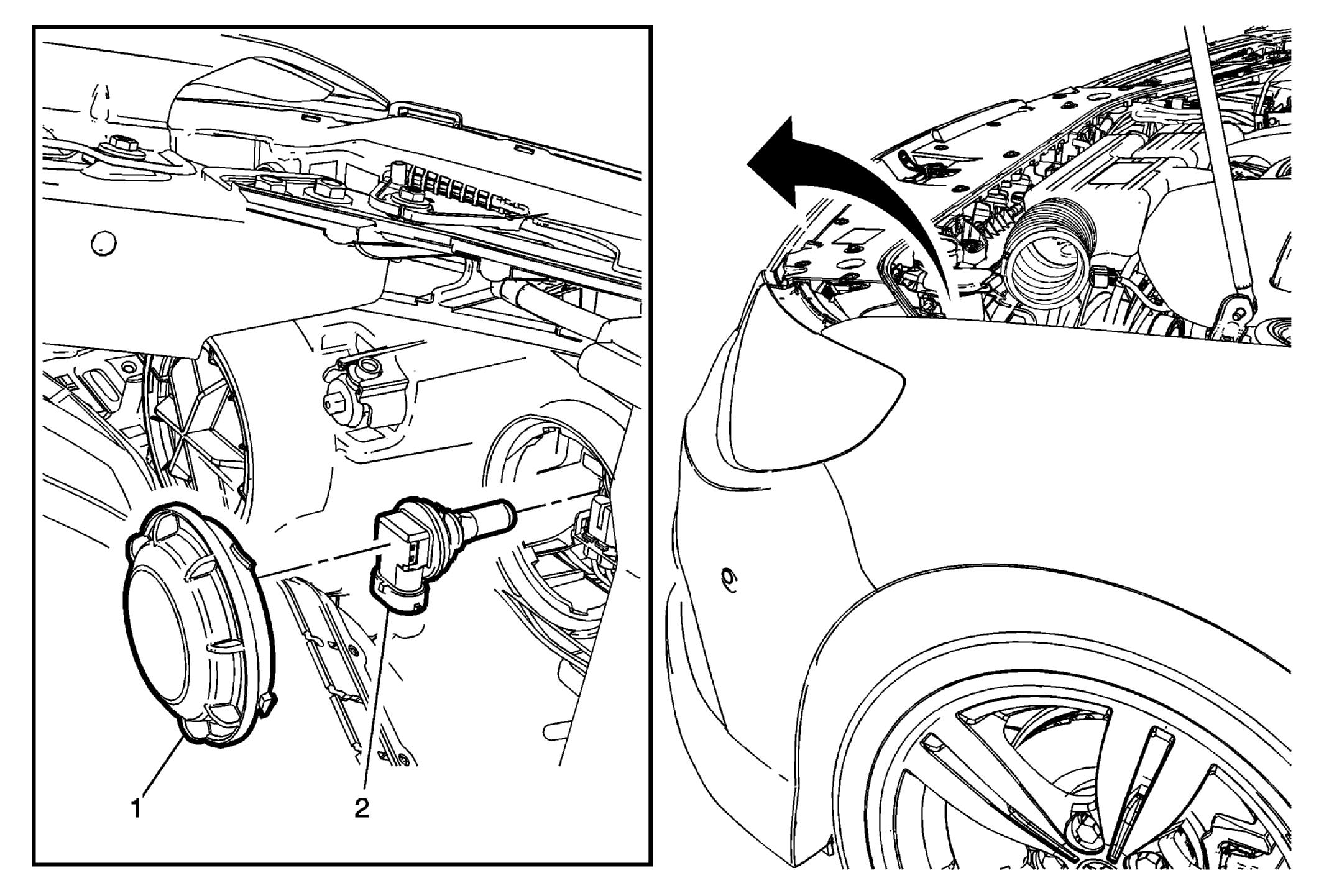

Fig 1: High Beam Headlamp Bulb
GM3289901Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Open and support the hood.
  2. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
1 Headlamp Bulb Access Hole Cover
Procedure
Rotate the headlamp bulb access hole cover counterclockwise and pull from the headlamp.
2 Headlamp Bulb
WARNING:

Refer to Halogen Bulb Warning .

Procedure

  1. Disconnect the electrical connector.
  2. Rotate the headlamp bulb counterclockwise and pull from the headlamp.
