Dome and Reading Lamp Procedure

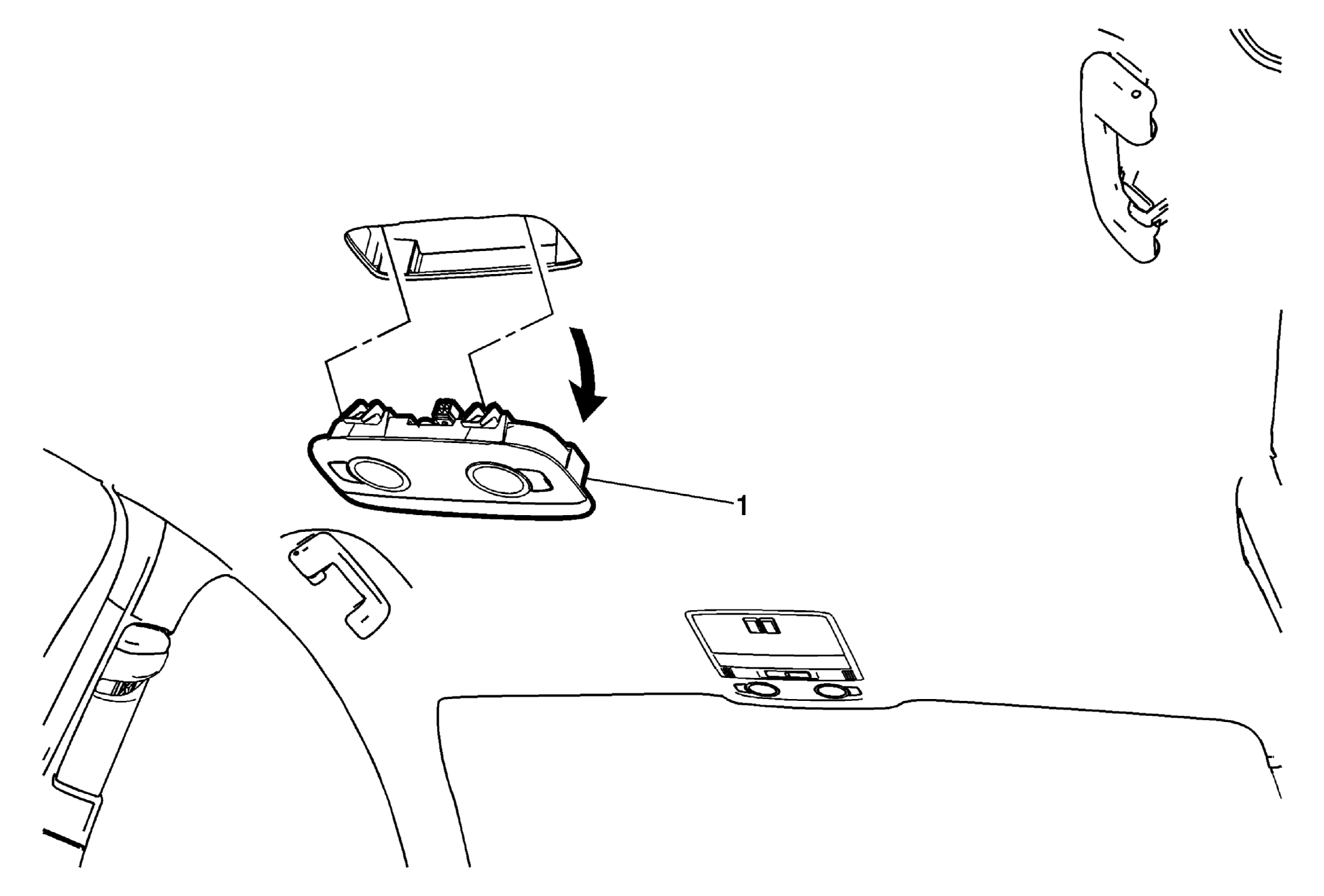

- Grasp the front of the right and left sides of the dome and reading lamp assembly and pull downward using equal force on each side in order to release the two retainer clips securing the lamp assembly to the headlining assembly. Pivot the assembly rearwards to release the rear two retainer clips.
- Disconnect the electrical connections.
|
