Daytime Running Lamp Replacement

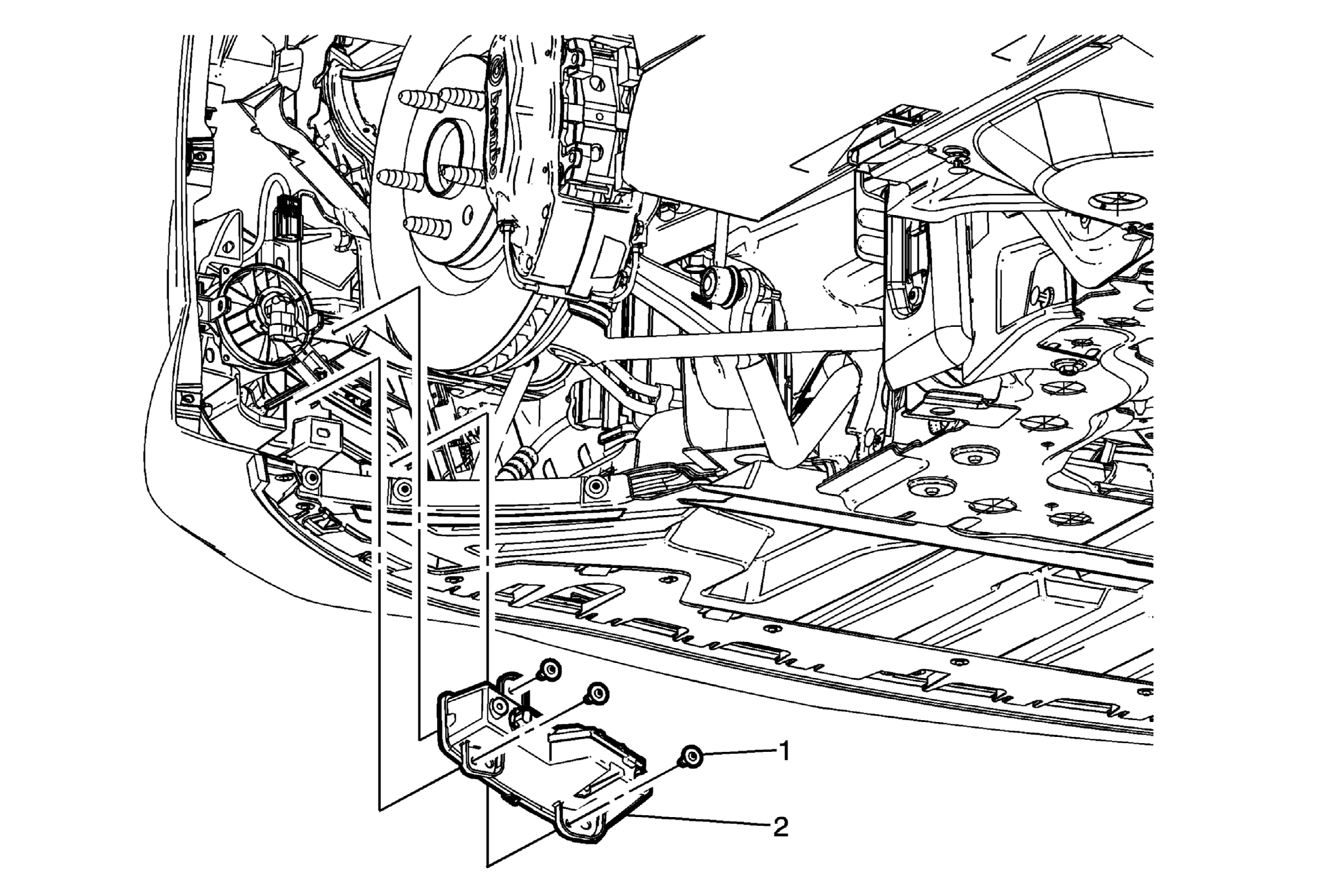

Fig 1: Daytime Running Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front wheel liner. Refer to Front Wheelhouse Liner Replacement .
1	Daytime Running Lamp Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Daytime Running Lamp Procedure Disconnect the electrical connector. Pull straight back from the front bumper fascia.

Callout

Component Name

Preliminary Procedure
Remove the front wheel liner. Refer to Front Wheelhouse Liner Replacement .

Daytime Running Lamp Bolt (Qty: 3)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Daytime Running Lamp

Procedure
