Rear Side Door Window Belt Reveal Molding Replacement

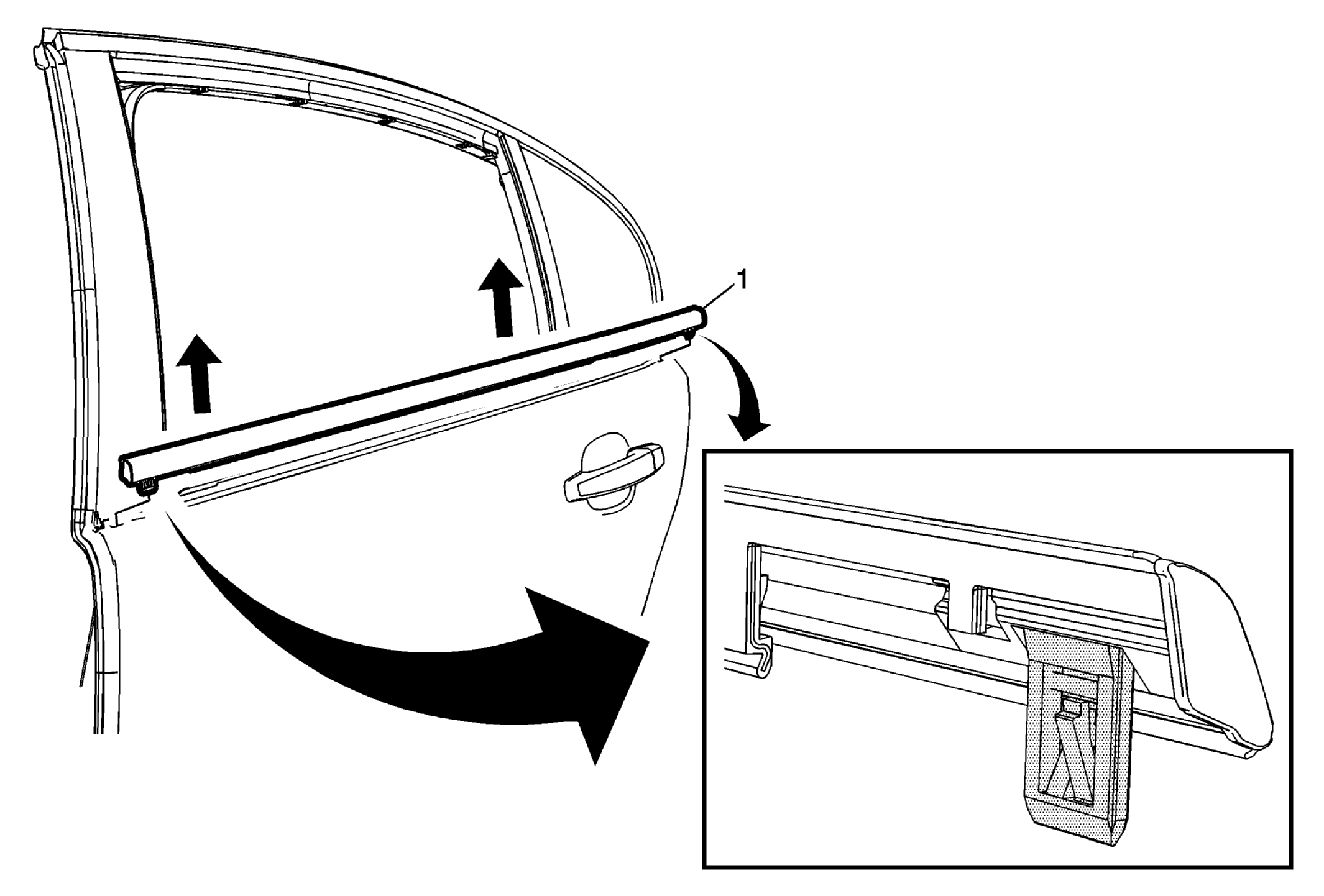

Fig 1: Rear Side Door Window Belt Reveal Molding

GM2913235

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

1

Rear Side Door Window Belt Reveal Molding

Procedure

Lower the window to the full down position.
Tape off the lower window frame to prevent damage to the door.
Using the appropriate tool, lift one end up and pull away from the door flange to remove.
Install the rear side door window belt reveal molding to the door flange pushing downward until fully seated.

NOTE:

Inspect the door window for proper operation.
