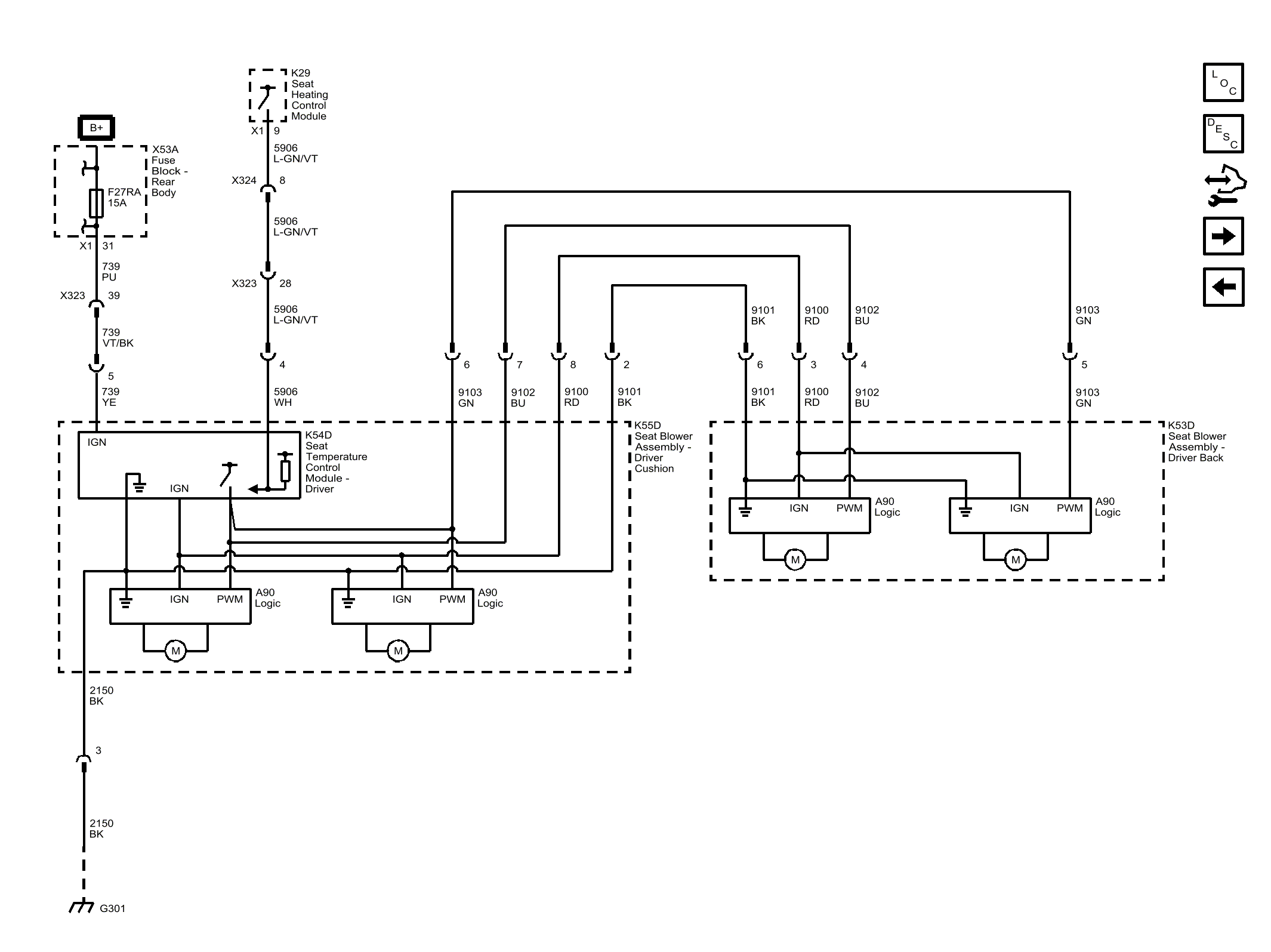

Home >> Chevrolet >> 2015 >> SS Automatic Trans >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Seats >> Seat Heating System And Seat Cooling System >> Schematic Wiring Diagrams >> Heated/Cooled Seat Wiring Schematics >> Ventilated Seat - Driver (KU1)
