Rear Seat Head Restraint Replacement

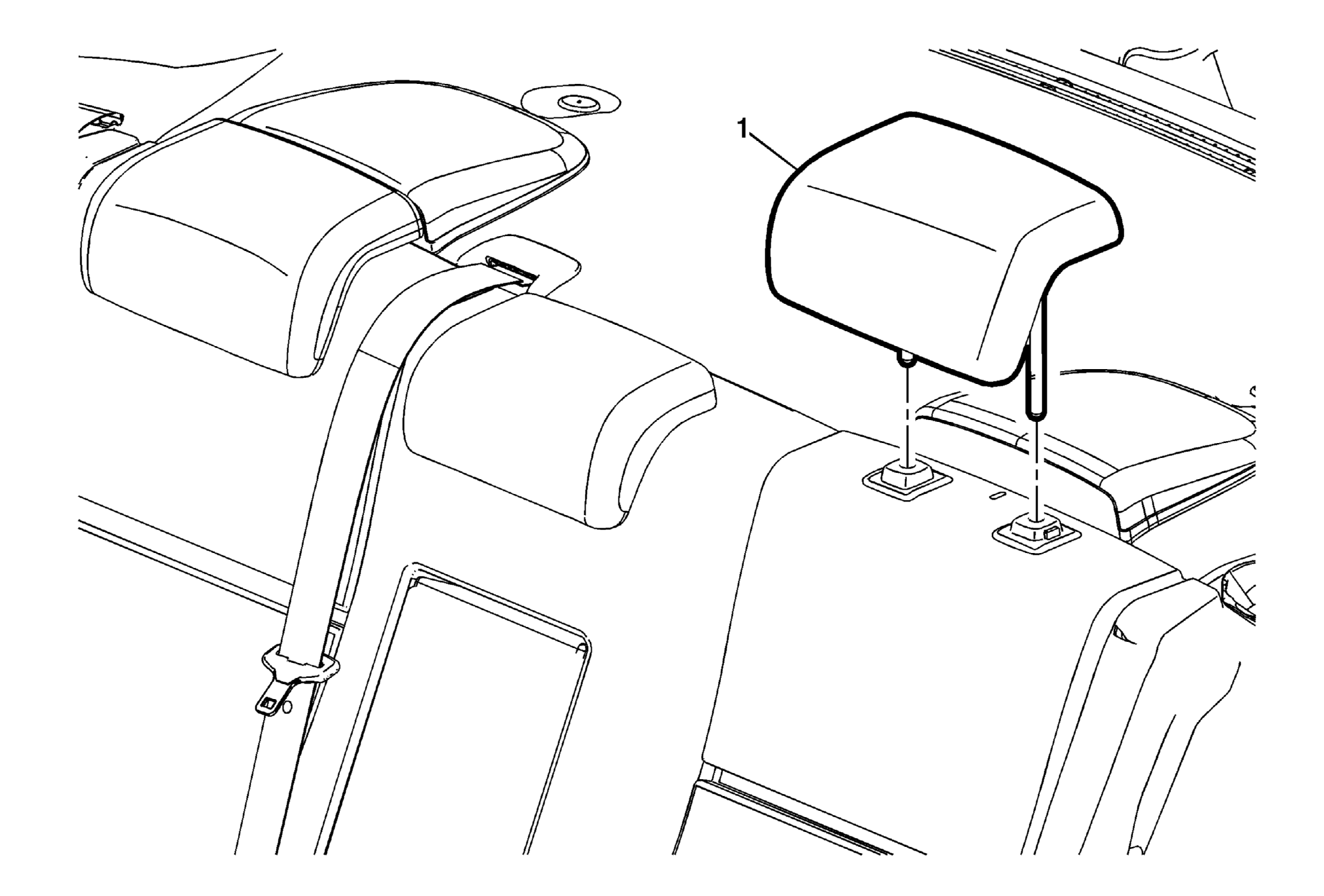

Fig 1: Rear Seat Head Restraint
GM3225228Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Seat Head Restraint

Procedure

  1. Lower the seat back forward to gain space between the head restraint and the roof.
  2. Depress the large button on the head restraint guide and raise the head restraint to the full up position.
  3. Depress the large and small buttons found on the head restraint guides and pull upward on the head restraint to remove.
