Rear Seat Center Head Restraint Replacement

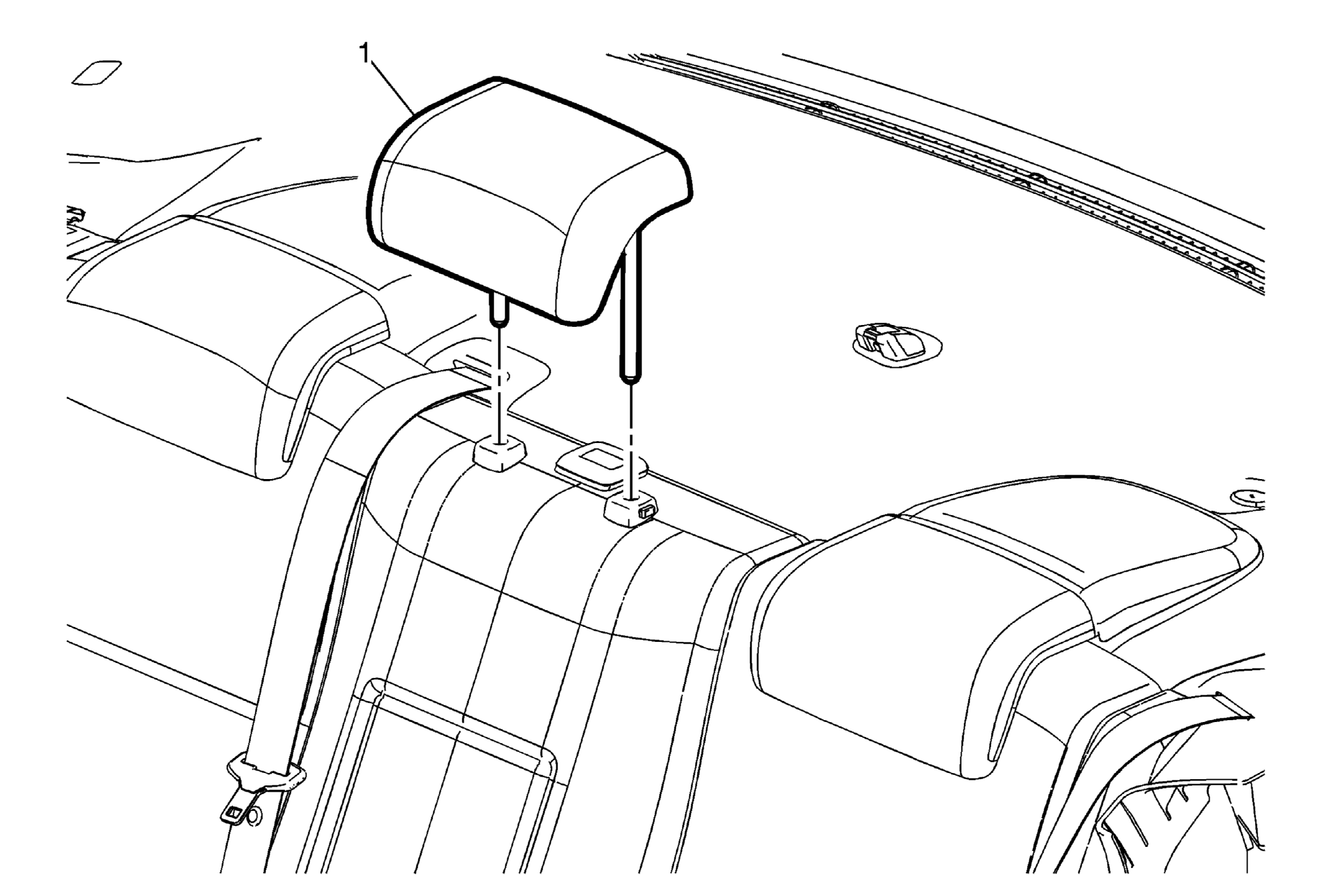

Fig 1: Rear Seat Center Head Restraint
GM3224922Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Seat Center Head Restraint

Procedure

  1. Depress the large button on the head restraint guide and raise the head restraint to the full up position.
  2. Depress the large and small buttons found on the head restraint guides and pull upward on the head restraint to remove.
