Rear Seat Back Cushion Latch Striker Replacement (Sedan)

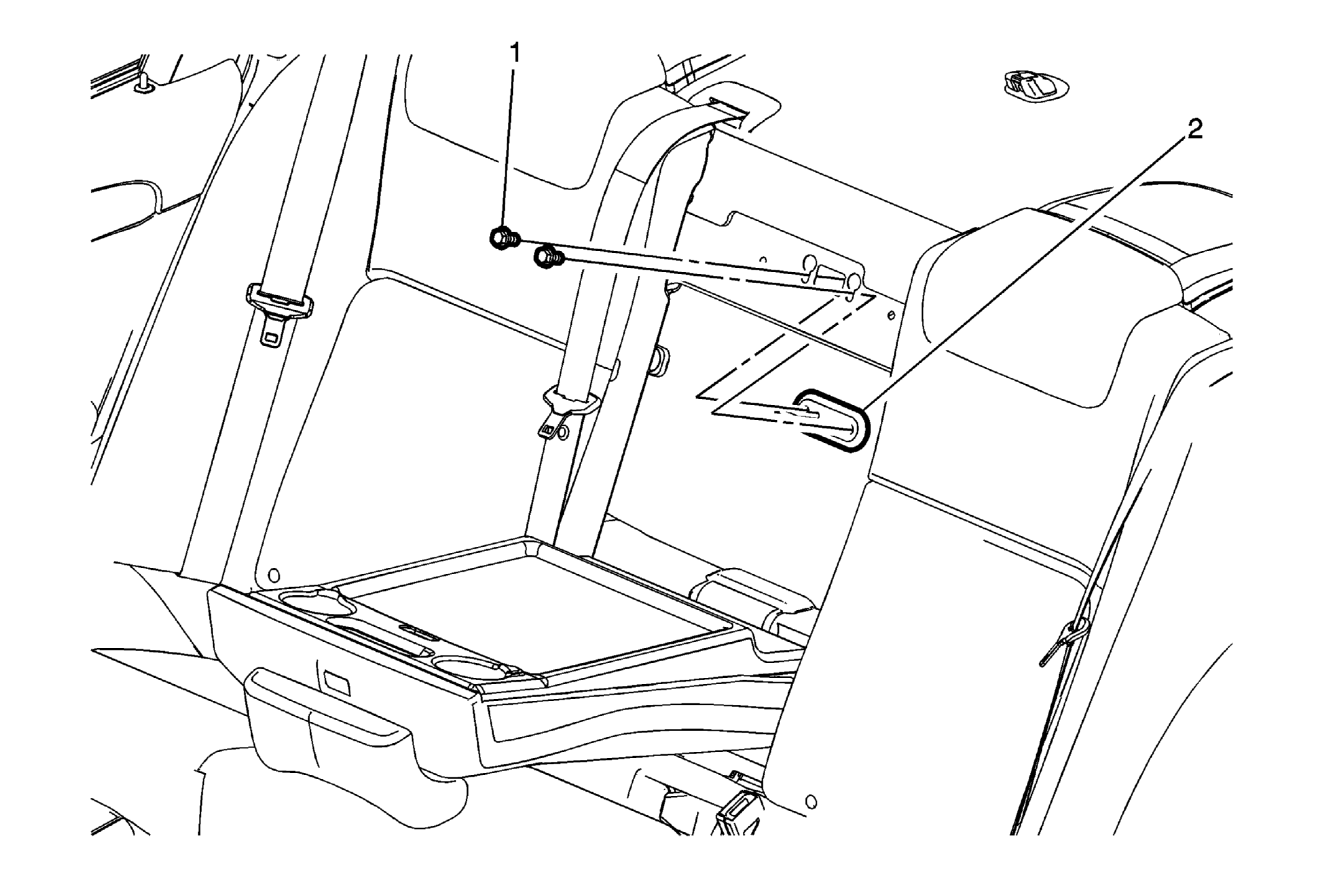

Fig 1: Rear Seat Back Cushion Latch Striker (Sedan)
GM3226178Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Seat Back Cushion Latch Striker Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Procedure
Fold the rear seat back center cushion forward.
Tighten
40 N.m (30 lb ft)
2 Rear Seat Back Cushion Latch Striker
