Rear Seat Armrest Compartment Door Latch Replacement

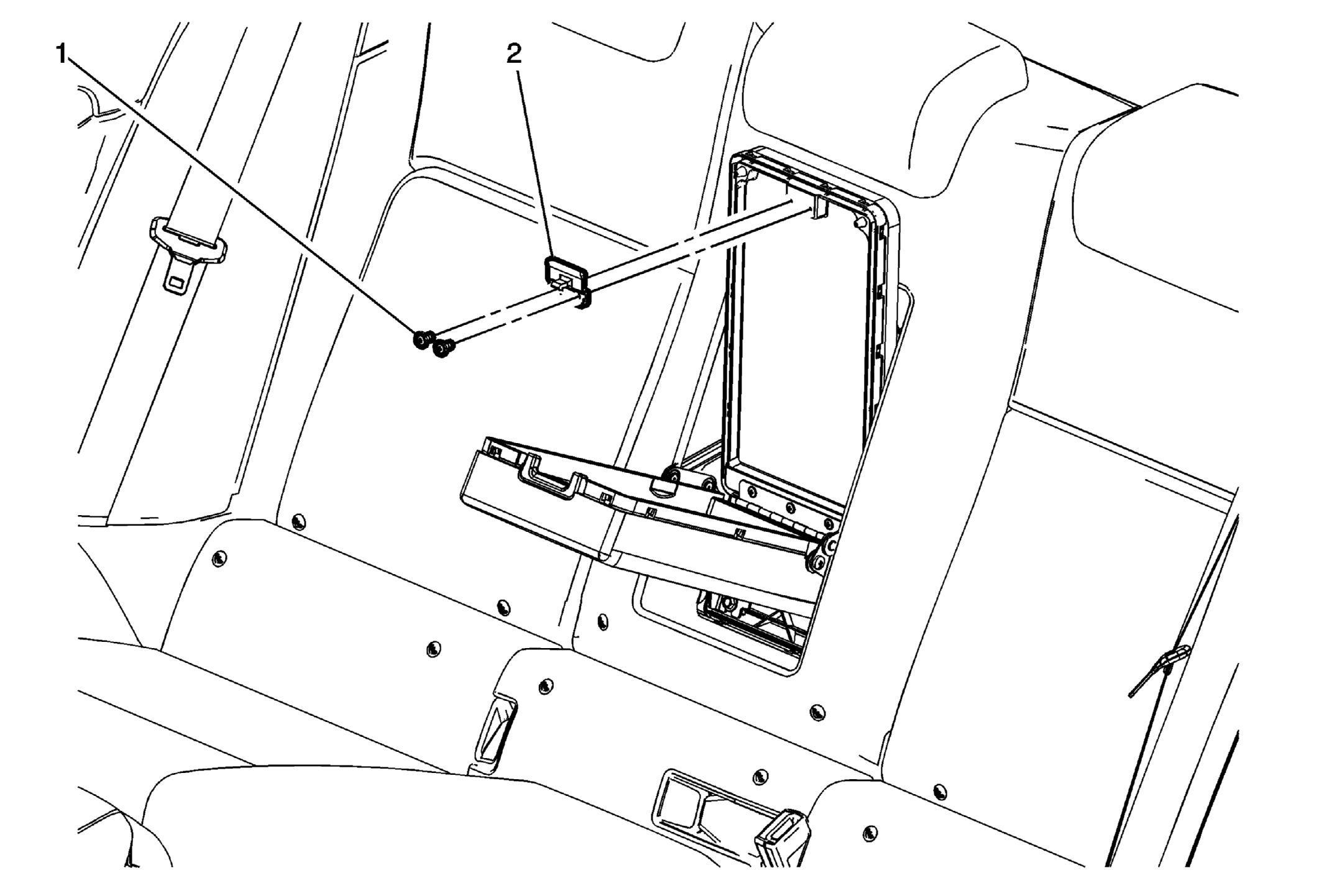

Fig 1: Rear Seat Armrest Compartment Door Latch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Seat Armrest Compartment Door Latch Fasteners (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure  Fold the rear seat center cushion armrest down to gain access to the compartment door latch fasteners.
2	Rear Seat Armrest Compartment Door Latch
