Front Seat Head Restraint Adjust Knob Replacement

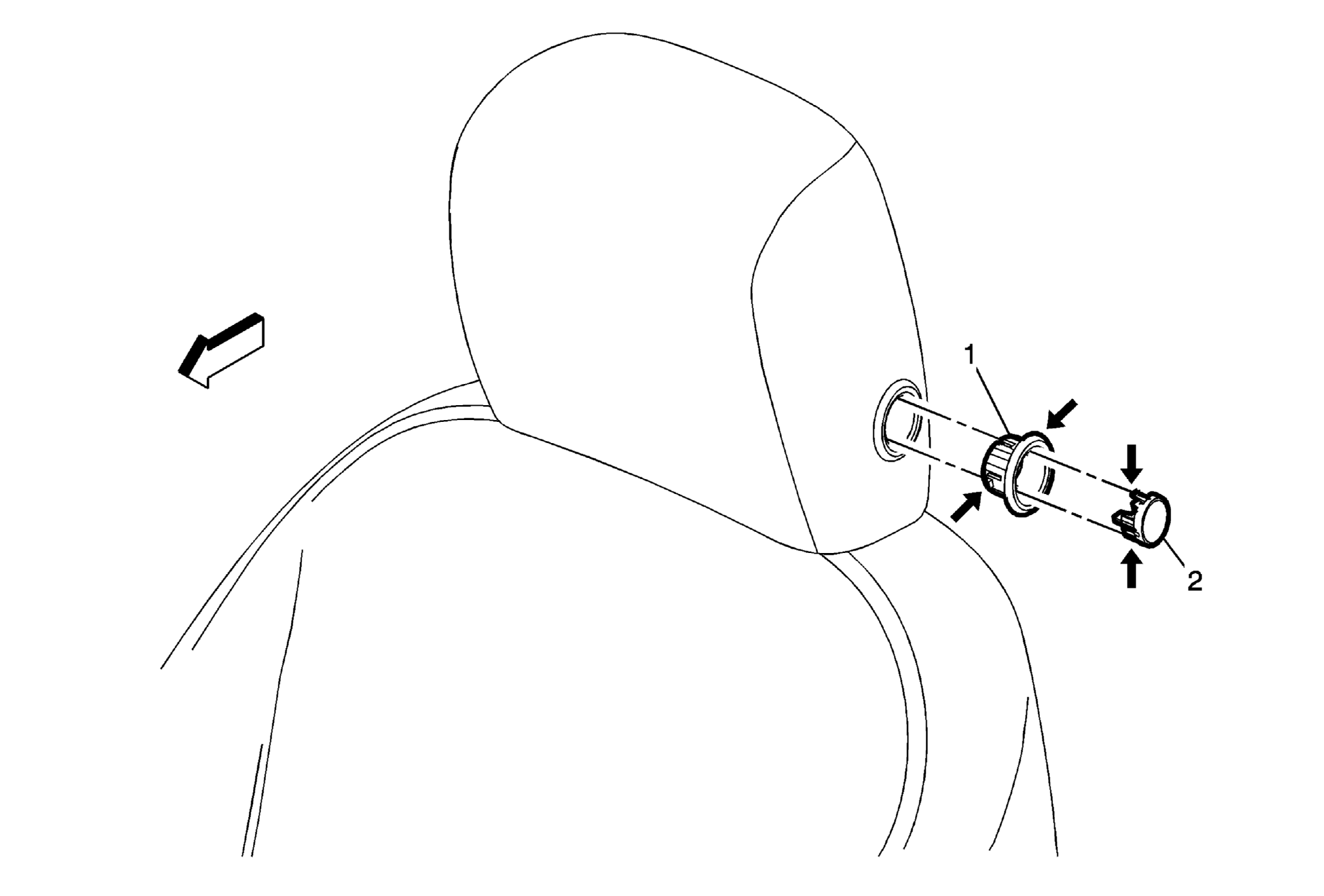

Fig 1: Front Seat Head Restraint Adjust Knob

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Seat Head Restraint Adjuster Knob Bezel Procedure  Use a flat-bladed tool to push inward on the adjuster bezel tabs to release the bezel from the front seat head restraint.
2	Front Seat Head Restraint Adjuster Knob Replacement Procedure  Use a flat-bladed tool to push inward on the adjuster knob tabs to release it from the bezel.
