Front Seat Adjuster Knob Replacement (8-Way Power)

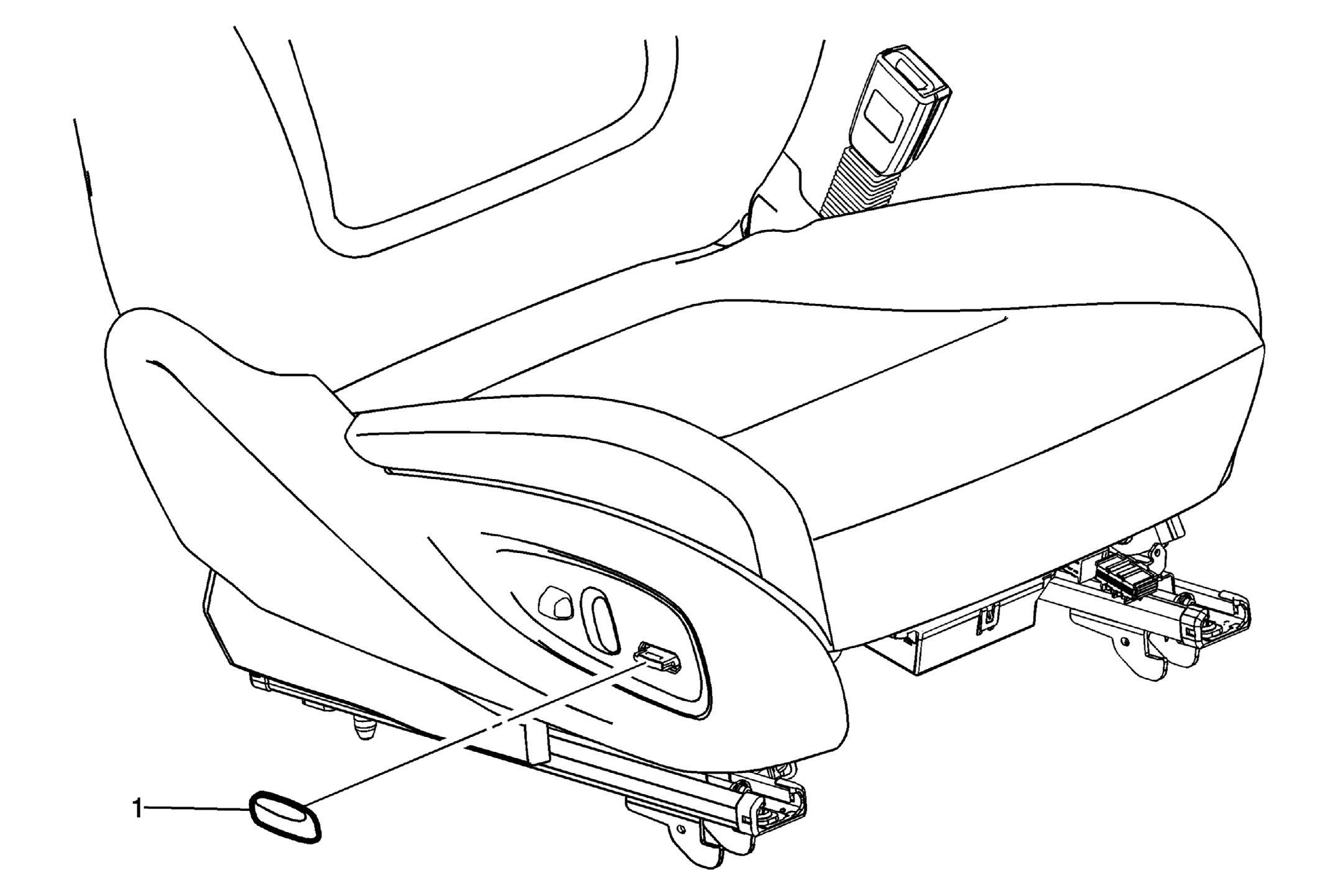

Fig 1: Front Seat Adjuster Knob (8-Way Power)
GM3213667Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Seat Adjuster Knob
Procedure
Use a flat-bladed tool to release the adjuster knob from the front seat cushion outer finish cover.
