Position Motors and Seat Adjuster Switch (A45)

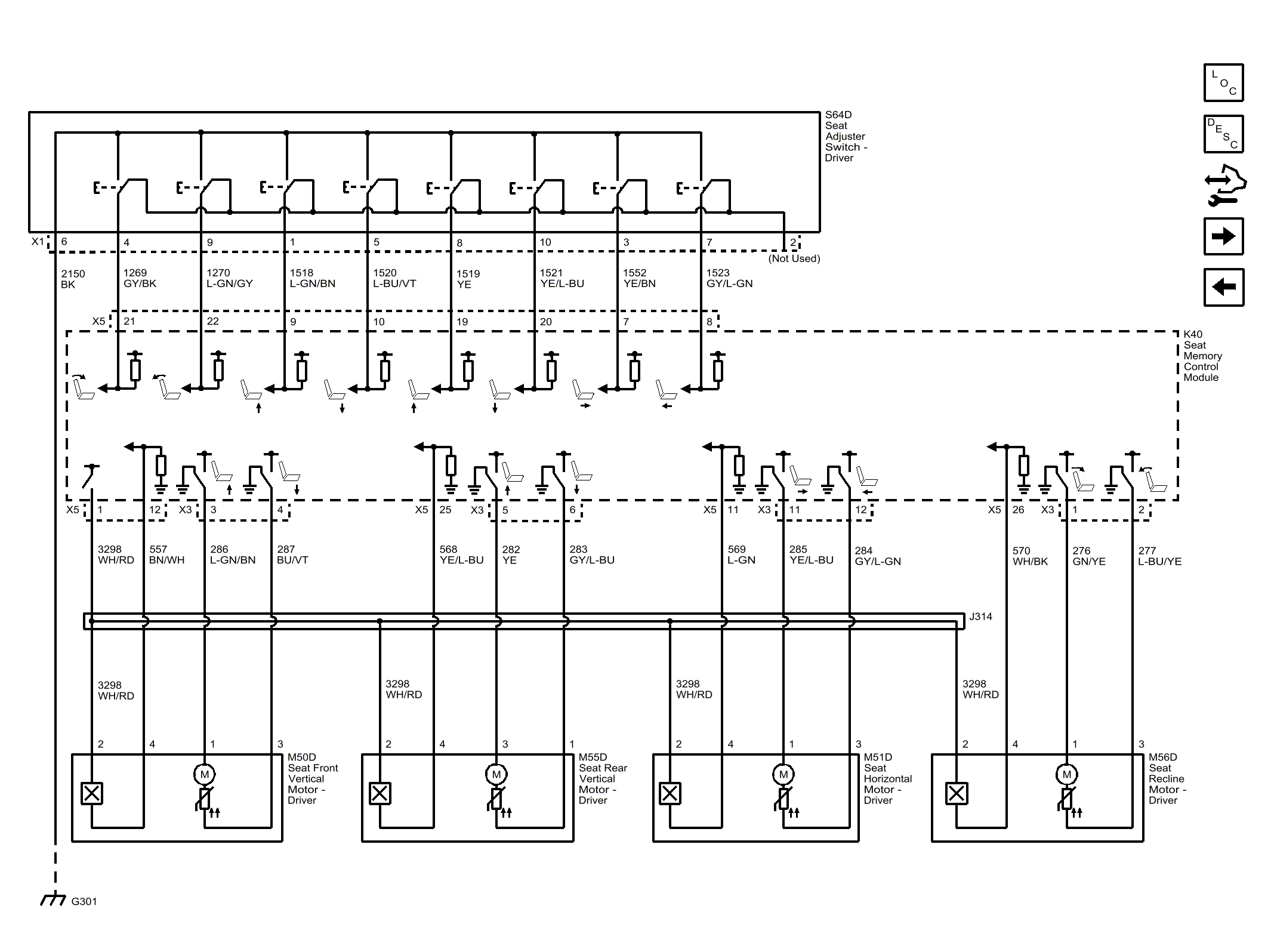

Fig 1: Position Motors and Seat Adjuster Switch (A45)

GM3922996

Courtesy of GENERAL MOTORS COMPANY
