Driver or Passenger Seat Cushion Frame Replacement

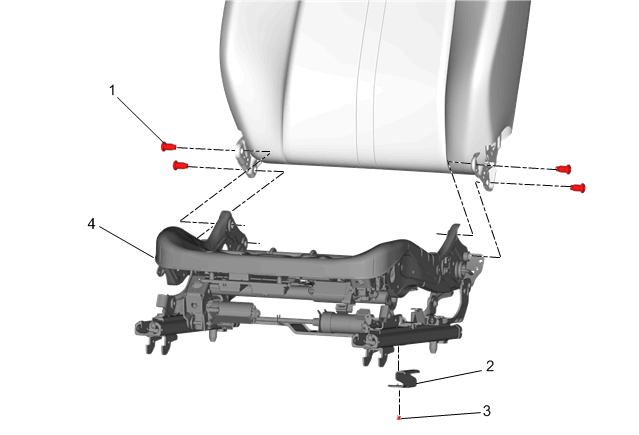

Fig 1: Driver or Passenger Seat Cushion Frame
GM4200787Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to SIR Warning .

Preliminary Procedure Front Seat Cushion Cover and Pad Replacement
1 Driver or Passenger Seat Cushion Frame Bolt [4x]
CAUTION:

Refer to Fastener Caution .


Tighten
35 N.m (26 lb ft)
Procedure
Remove the front seat recliner control bracket to gain access to the seat cushion frame bolt.
2 Driver or Passenger Seat Position Bracket
Procedure
Transfer bracket to new frame.
NOTE:

The seat position bracket is located on the inner side of the seat cushion frame and must be transferred if replacing the seat cushion frame.
3 Driver or Passenger Seat Position Bracket Rivet
4 Driver or Passenger Seat Cushion Frame

Procedure

  1. Disconnect all electrical connectors.
  2. Transfer components as necessary.
