Front and Rear Side Door Outer Opening Frame Upper Reveal Molding Replacement

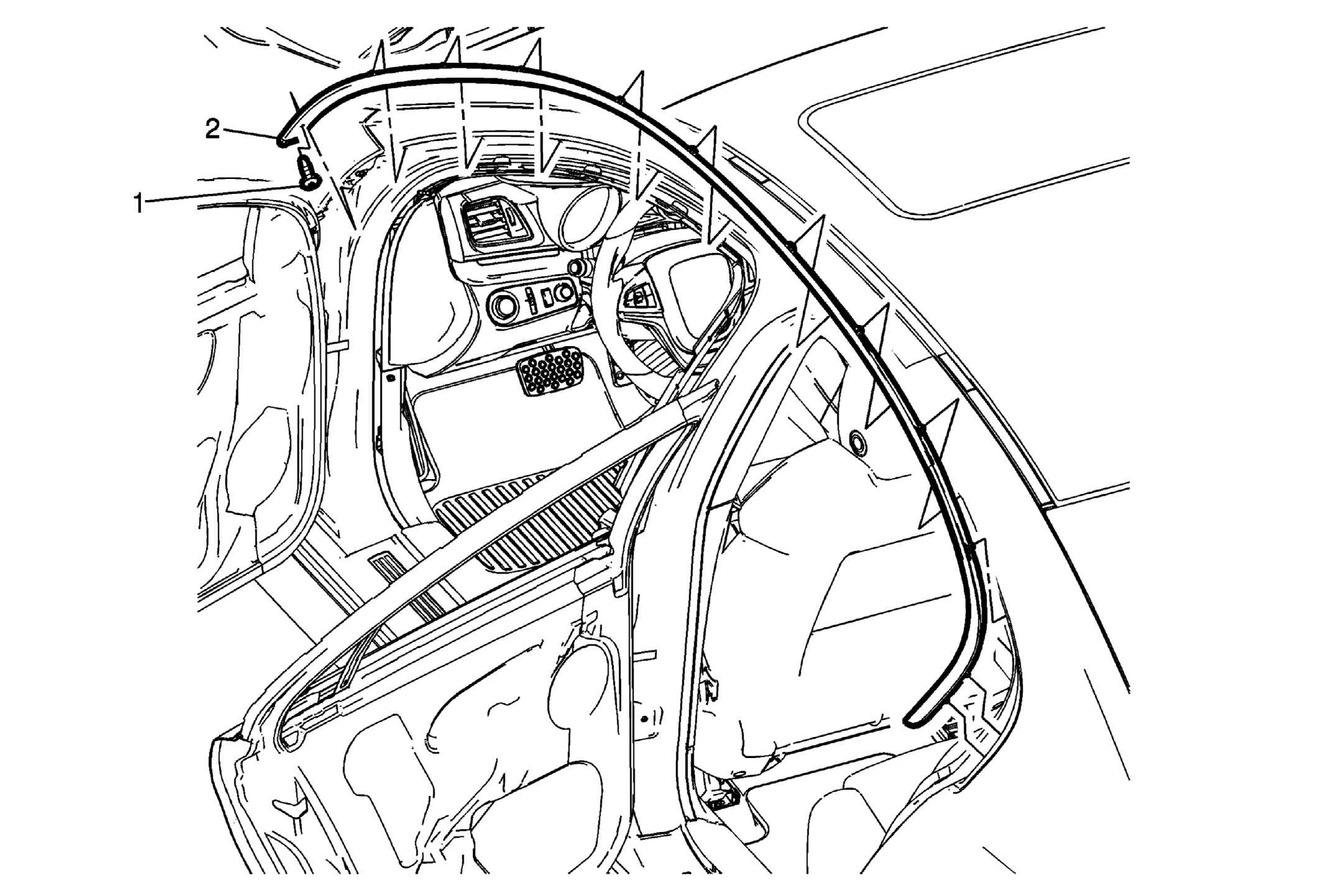

Fig 1: Front and Rear Side Door Outer Opening Frame Upper Reveal Molding
GM3581421Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Open the front and rear side door.
1 Front and Rear Side Door Outer Opening Frame Reveal Molding Screw
CAUTION:

Refer to Fastener Caution .


Tighten
1 N.m (9 lb in)
2 Front and Rear Side Door Outer Opening Frame Reveal Molding

Procedure

  1. Take care not to damage the paint on the vehicle when removing.
  2. Grasp the forward end of the front and rear side door opening frame reveal molding and pull firmly downward to disengage the 11 retainers.
  3. Replace any damaged retainers.
