Hood Insulator Replacement

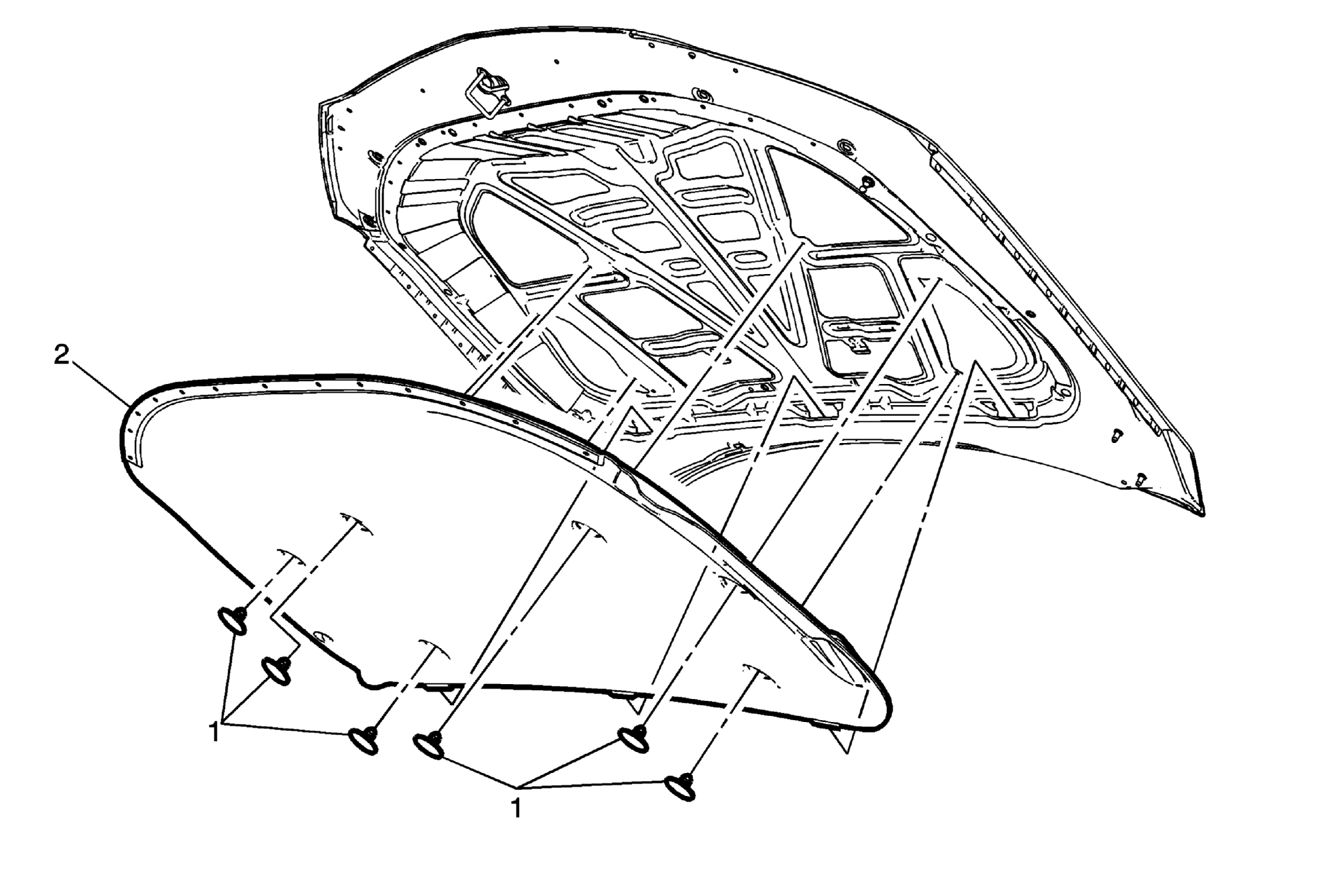

Fig 1: Hood Insulator & Retainers

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Hood Insulator Retainer (Qty: 6) Procedure Using a trim tool remove the hood insulator retainers with the insulator. Using a trim tool remove the hood front weatherstrip. Refer to Hood Front Weatherstrip Replacement NOTE: Do not attempt to remove the retainers by hand. Doing so will damage the hood insulator.
2	Hood Insulator Procedure Ensure the three lower integral tabs are secure to the hood.

Callout

Component Name

Hood Insulator Retainer (Qty: 6)

Procedure

Using a trim tool remove the hood insulator retainers with the insulator.
Using a trim tool remove the hood front weatherstrip. Refer to Hood Front Weatherstrip Replacement

NOTE:

Do not attempt to remove the retainers by hand. Doing so will damage the hood insulator.

Hood Insulator
Procedure
Ensure the three lower integral tabs are secure to the hood.
