Fuel Tank Filler Door Latch Replacement

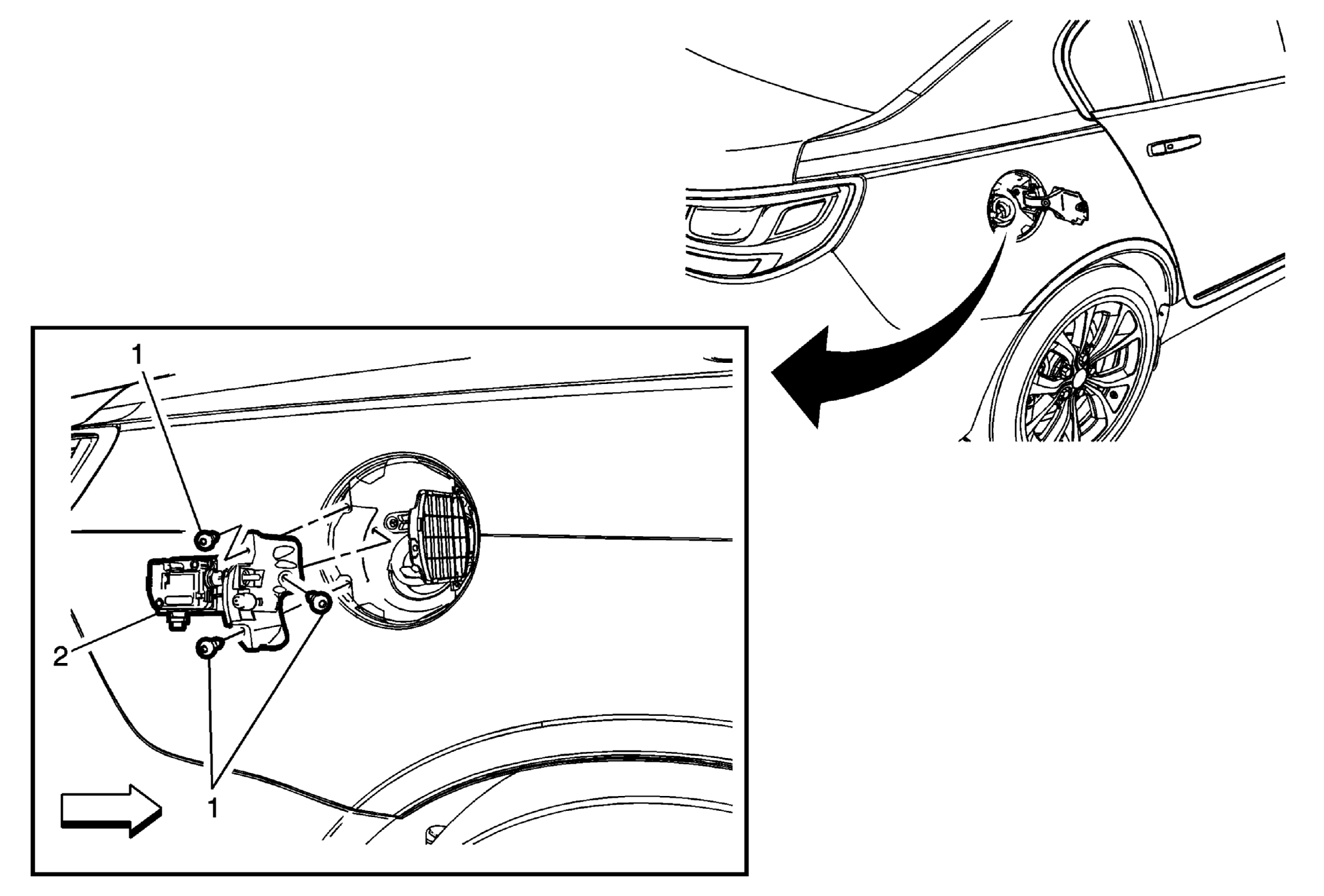

Fig 1: Fuel Tank Filler Door Latch
GM2910569Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Fuel Tank Filler Door Latch Housing Bolts (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Tighten
2 N.m (18 lb in)
2 Fuel Tank Filler Door Latch Housing

Procedure

  1. Move the fuel tank filler door latch housing to the right and outward from the fuel filler pipe and the quarter panel.
  2. Disconnect the electrical connector.
