Front Side Door Upper Hinge and Lower Hinge Replacement

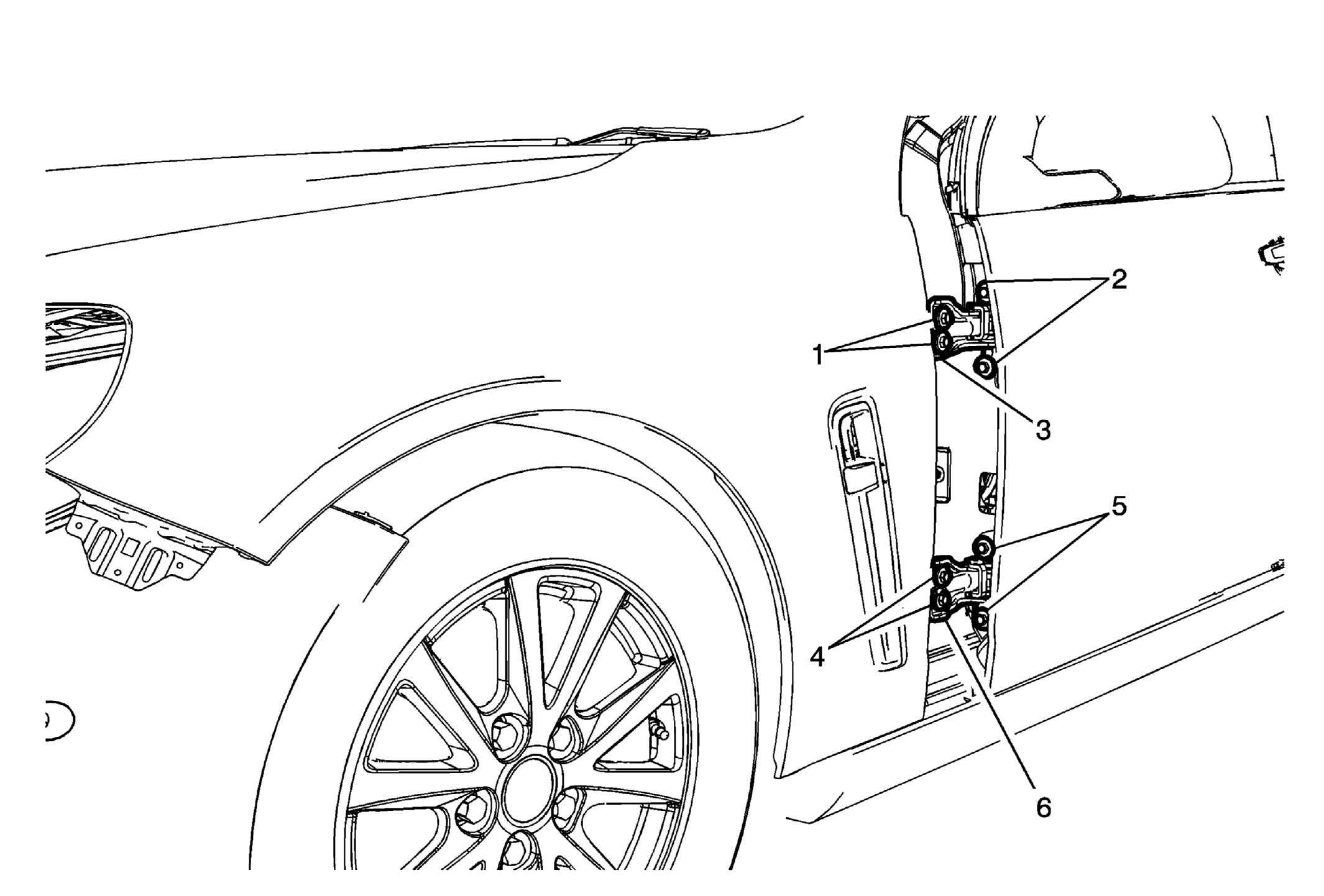

Fig 1: Front Side Door Upper Hinge, Lower Hinge

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Mark the location of the hinge before removing the bolts with a grease pencil. Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
1	Front Side Door Upper Hinge to Body Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Procedures Before removing the door, apply a double layer of masking tape around the perimeter of the painted surfaces. Support the door before removing the hinge bolts. Tighten 28 N.m (21 lb ft)
2	Front Side Door Upper Hinge to Door Bolt (Qty: 2) Tighten 28 N.m (21 lb ft)
3	Front Side Door Upper Hinge
4	Front Side Door Lower Hinge to Body Bolt (Qty: 2) Tighten 28 N.m (21 lb ft)
5	Front Side Door Lower Hinge to Door Bolt (Qty: 2) Tighten 28 N.m (21 lb ft)
6	Front Side Door Lower Hinge Procedure If the door striker needs adjust. Refer to Front Side Door Lock Striker Adjustment . Front door adjustment. Refer to Front Side Door Adjustment . NOTE: Inspect the door for proper operation.
