Air Inlet Grille Panel Replacement

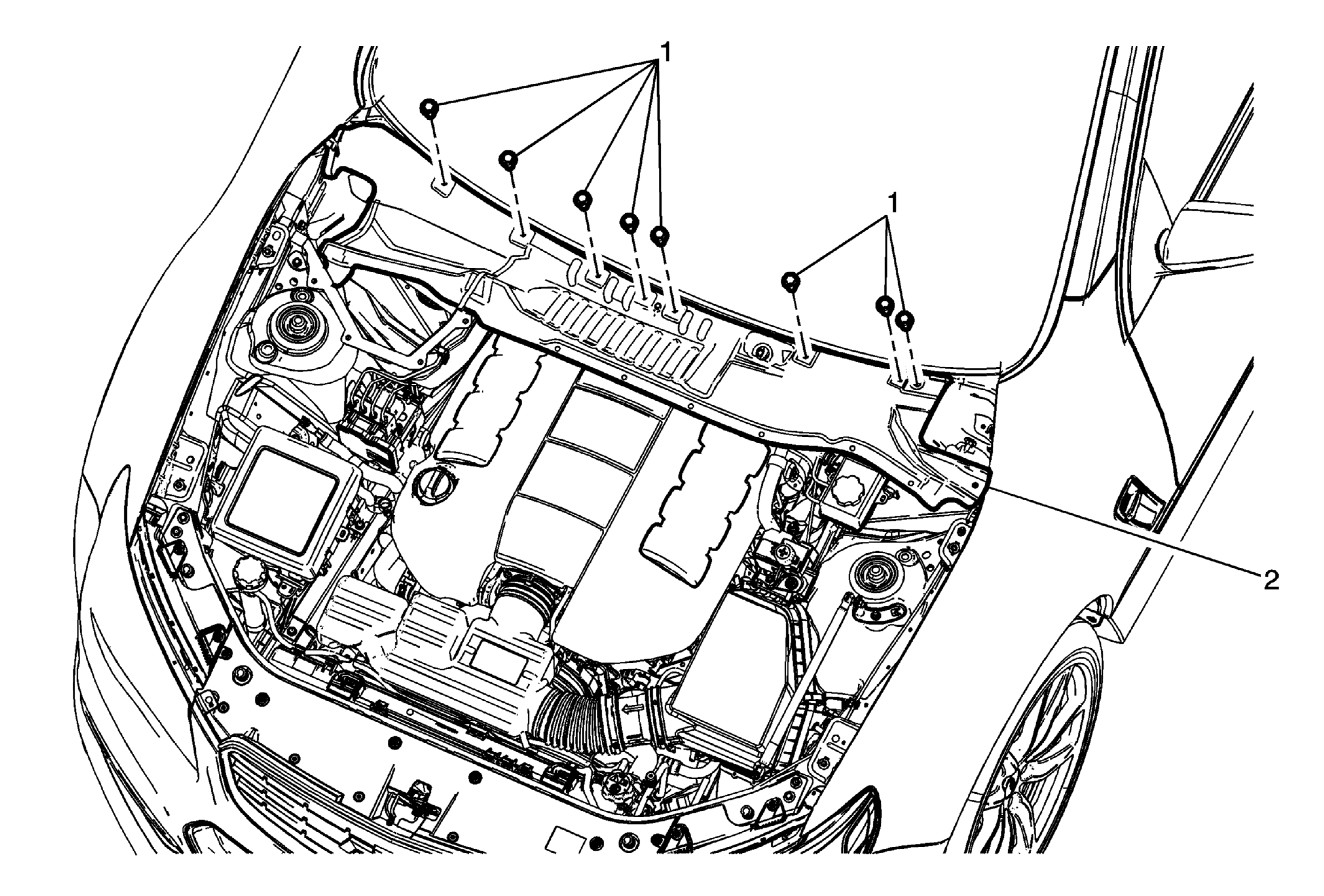

Fig 1: Air Inlet Grille Panel & Bolts
GM3461452Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the upper air inlet grille panel. Refer to Air Inlet Grille Panel Replacement (Passenger Side)Air Inlet Grille Panel Replacement (Driver Side) .
1 Lower Air Inlet Grille Panel Bolt (Qty: 8)
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Air Inlet Grille Panel
