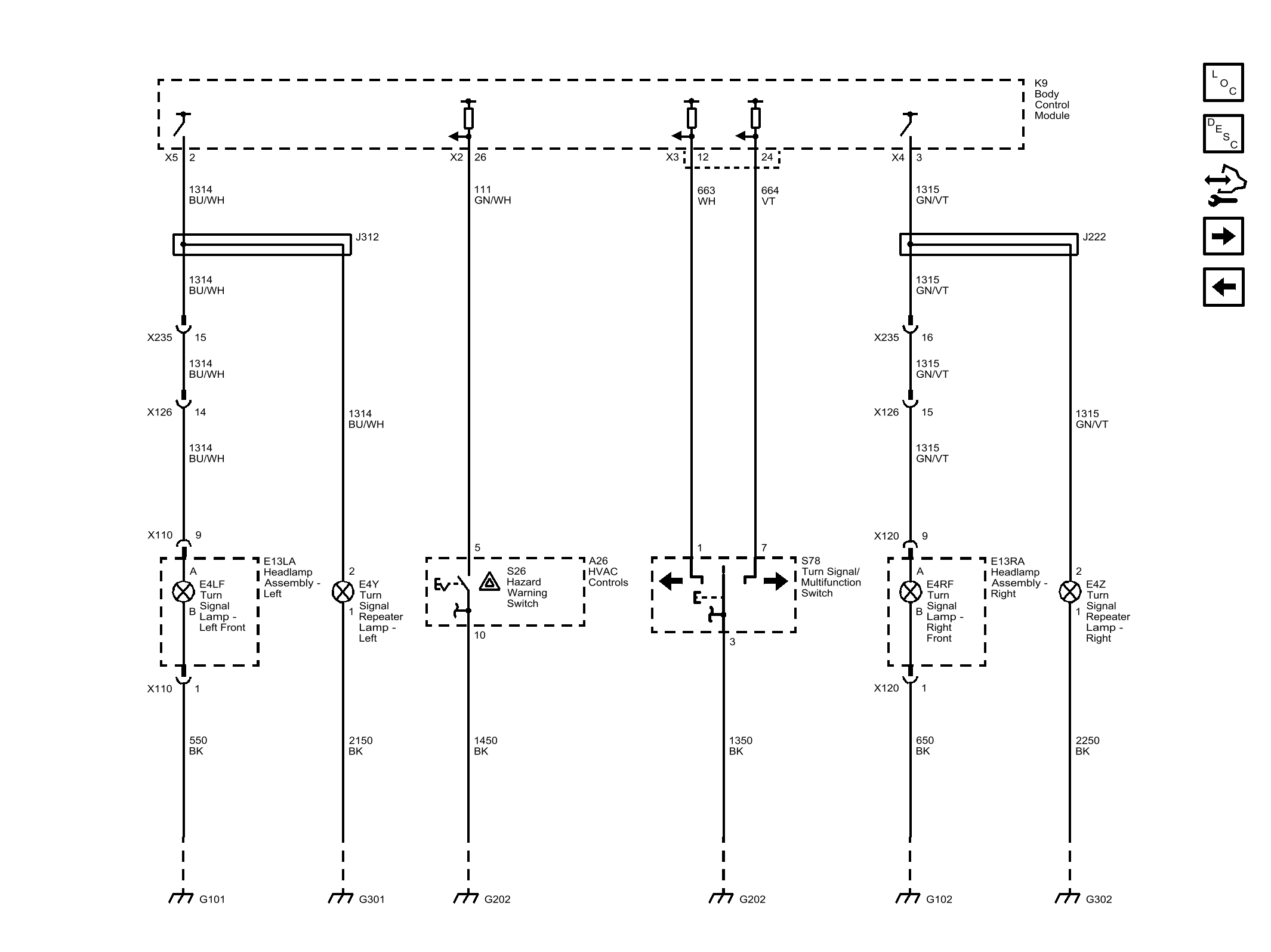

Home >> Chevrolet >> 2015 >> SS Automatic Trans >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Headlights >> Lighting System >> Schematic Wiring Diagrams >> Exterior Lights Wiring Schematics >> Turn Signal and Repeater Lamps
