Exterior Illumination, Park Lamps, and Controls

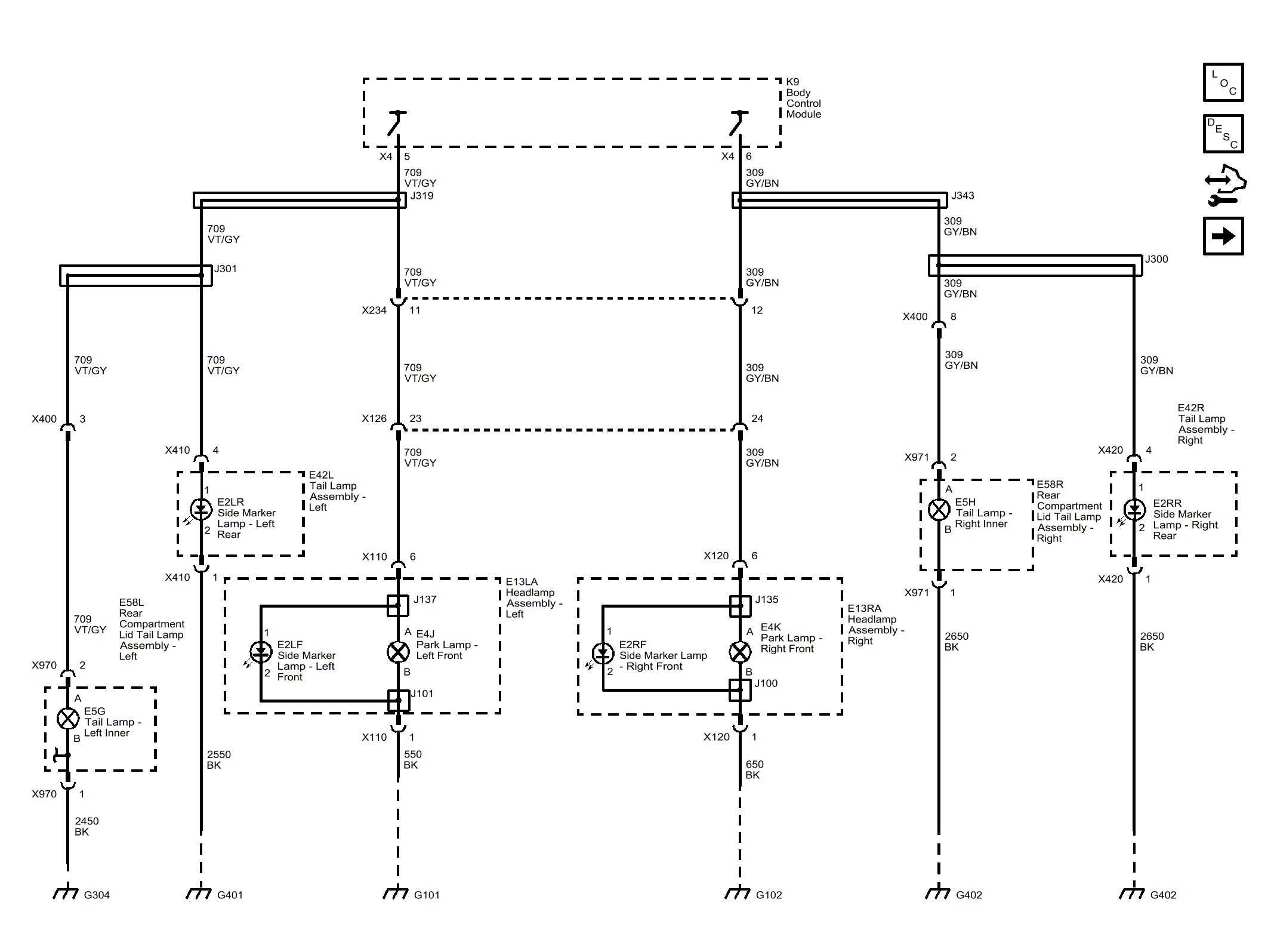

Fig 1: Exterior Illumination, Park Lamps, and Controls

GM3921539

Courtesy of GENERAL MOTORS COMPANY
