Steering Column Lower Trim Cover Replacement

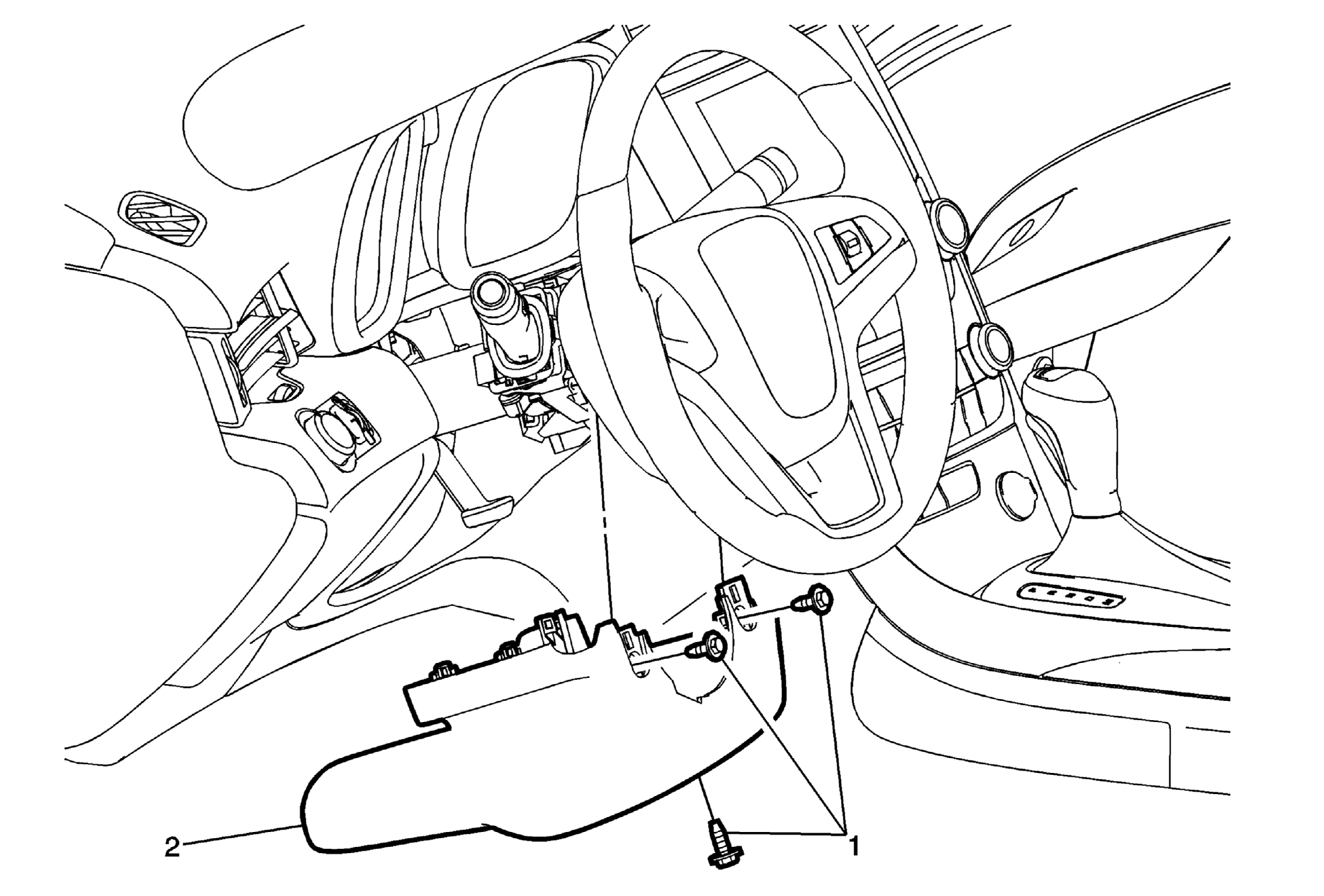

Fig 1: Steering Column Lower Trim Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the steering column upper trim cover assembly. Refer to Steering Column Upper Trim Cover Replacement .
1	Steering Column Lower Trim Cover Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Procedure  Turn the steering wheel right or left enough to access the fasteners.
2	Steering Column Lower Trim Cover
