Rear Seat Belt Buckle Replacement

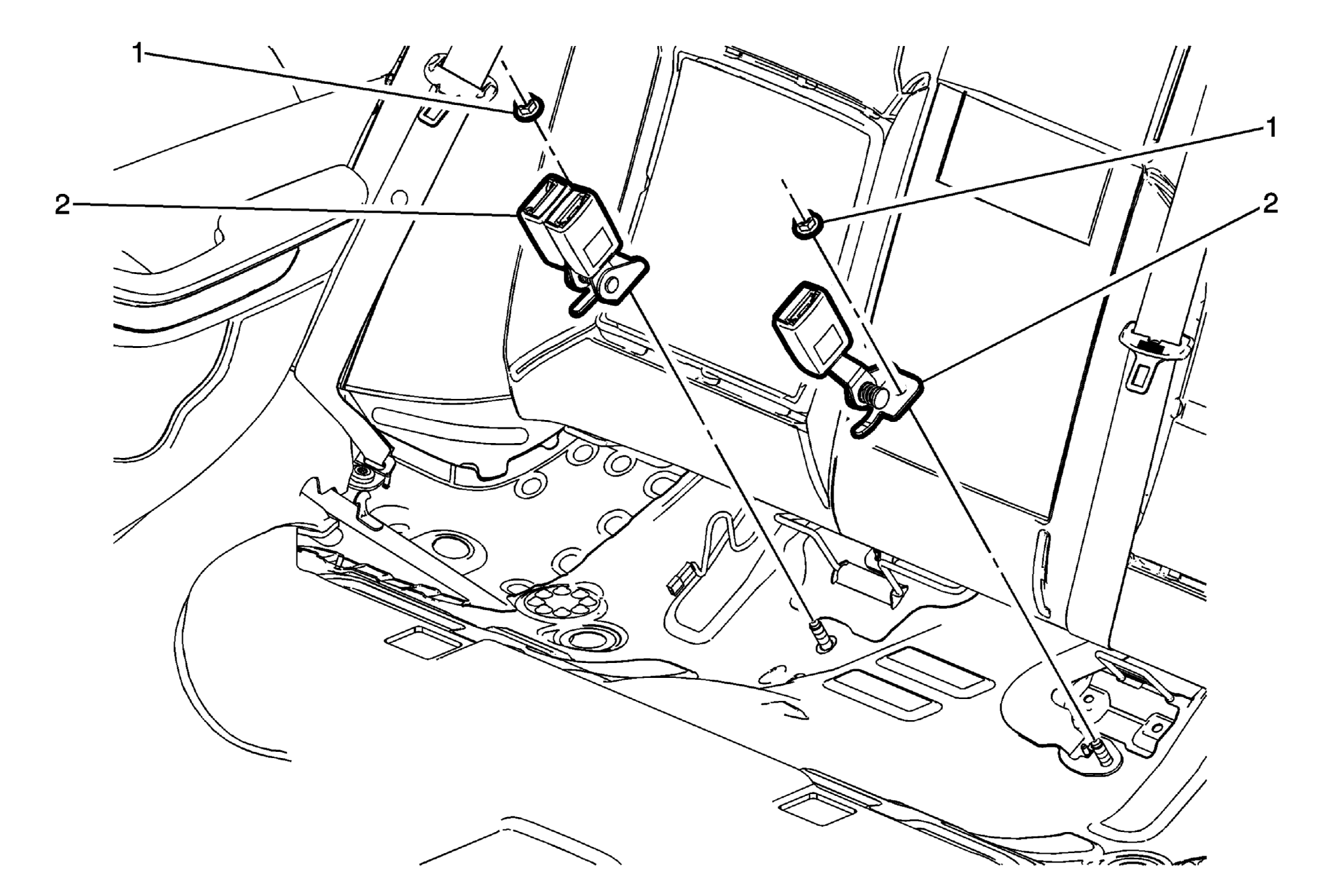

Fig 1: Rear Seat Belt Buckle
GM2567407Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation .
1 Rear Seat Belt Buckle Fastener (Qty: 2)
CAUTION: Refer to Fastener Caution .

Tighten
45 N.m (33 lb ft)
2 Rear Seat Belt Buckle Assembly (Qty: 2)
