Heater Outlet Hose Replacement (Heater Core Outlet Tube to Heater Outlet Pipe LKW)

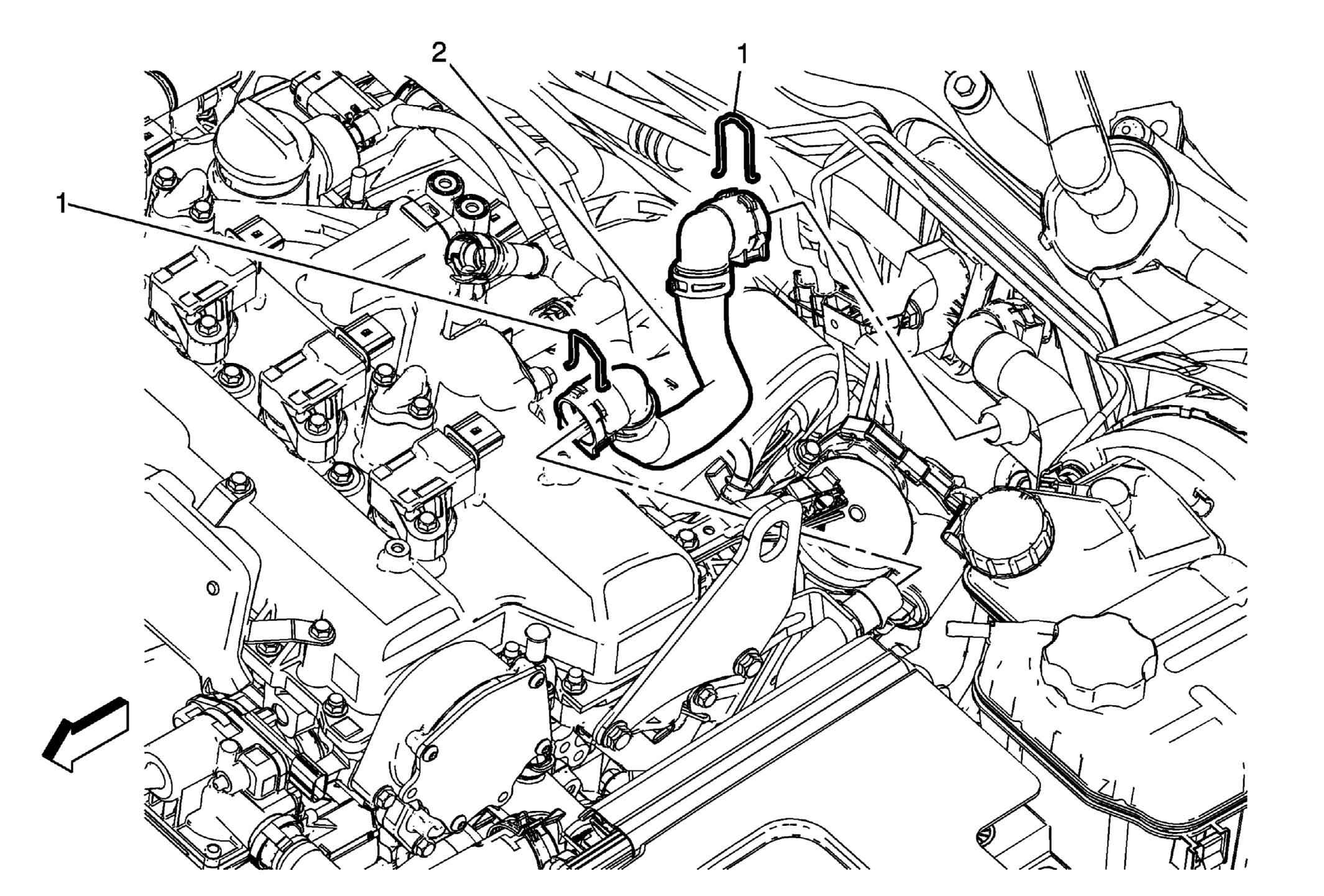

Fig 1: Heater Outlet Hose & Retaining Clips
GM3470085Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Drain the cooling system. Refer to Cooling System Draining and Filling (GE 47716) and Cooling System Draining and Filling (Static) .
  2. Remove the air cleaner resonator and outlet duct. Refer to Air Cleaner Resonator and Outlet Duct Replacement (LKW) .
  3. Reposition the power brake booster vacuum rear pipe. Refer to Power Brake Booster Vacuum Rear Pipe Replacement (LKW) .
1 Heater Outlet Hose Retaining Clip (Qty: 2)
2 Heater Outlet Hose

Procedure

  1. Fill the cooling system to the proper level. Refer to Cooling System Draining and Filling (GE 47716) and Cooling System Draining and Filling (Static) .
  2. Inspect the cooling system for leaks.
