Exhaust Manifold and Components

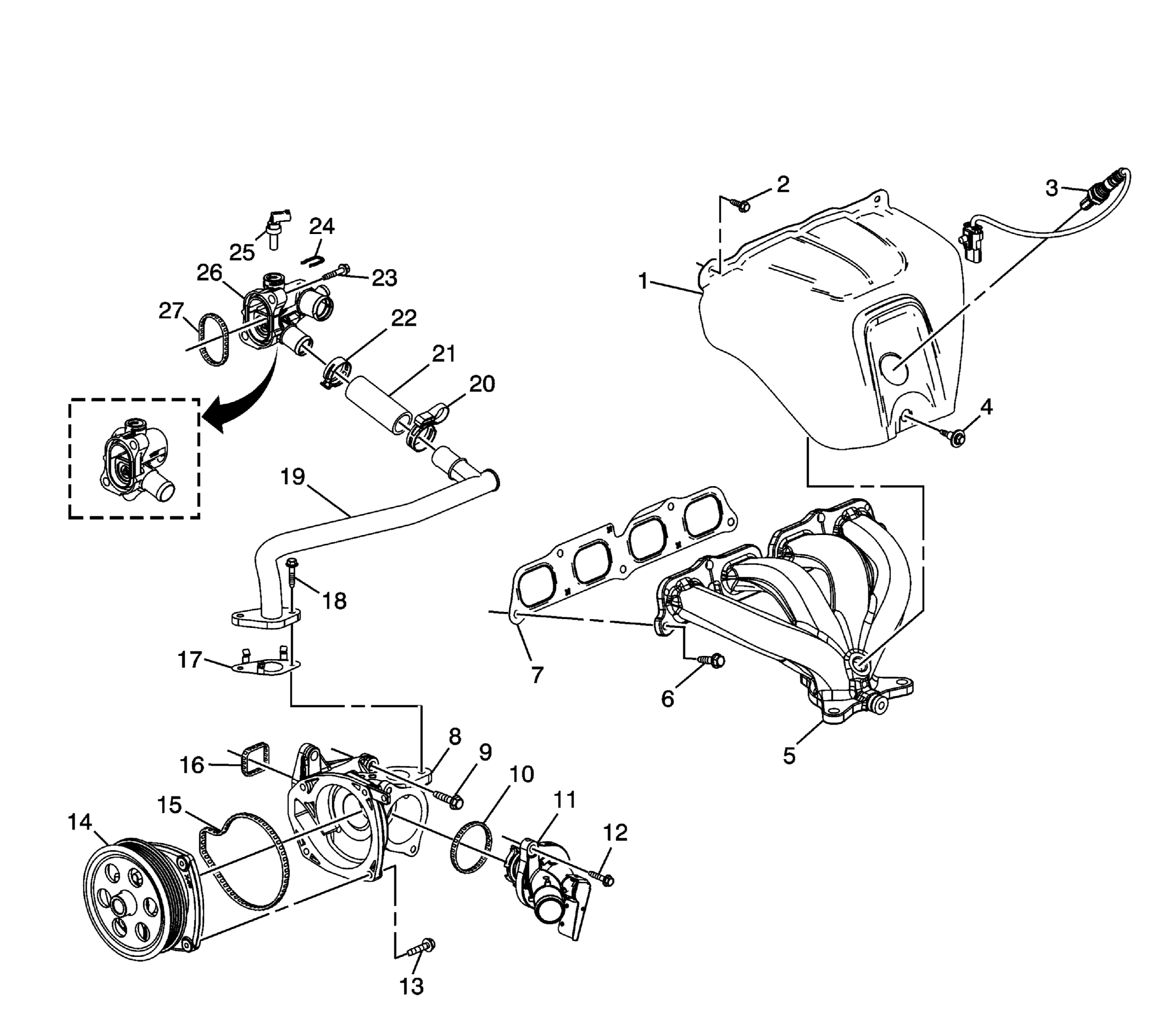

Fig 1: Exhaust Manifold and Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Exhaust Manifold Heat Shield
2	Exhaust Manifold Heat Shield Bolt
3	Heated Oxygen Sensor Assembly
4	Exhaust Manifold Heat Shield Bolt
5	Exhaust Manifold
6	Exhaust Manifold Bolt
7	Exhaust Manifold Gasket
8	Water Pump Rear Housing
9	Water Pump Bolt
10	Engine Coolant Thermostat Housing Gasket
11	Engine Coolant Thermostat Housing
12	Engine Coolant Thermostat Housing Bolt
13	Water Pump Housing Bolt
14	Water Pump Front Housing
15	Water Pump Inlet Gasket
16	Water Pump Gasket
17	Thermal Bypass Pipe Gasket
18	Thermal Bypass Pipe Bolt
19	Thermal Bypass Pipe
20	Thermal Bypass Hose Clamp
21	Thermal Bypass Hose
22	Thermal Bypass Hose Clamp
23	Water Outlet Bolt
24	Engine Coolant Temperature Sensor Retainer
25	Engine Coolant Temperature Sensor
26	Water Outlet
27	Water Outlet Gasket
