Radiator Surge Tank Inlet Hose Replacement (LKW)

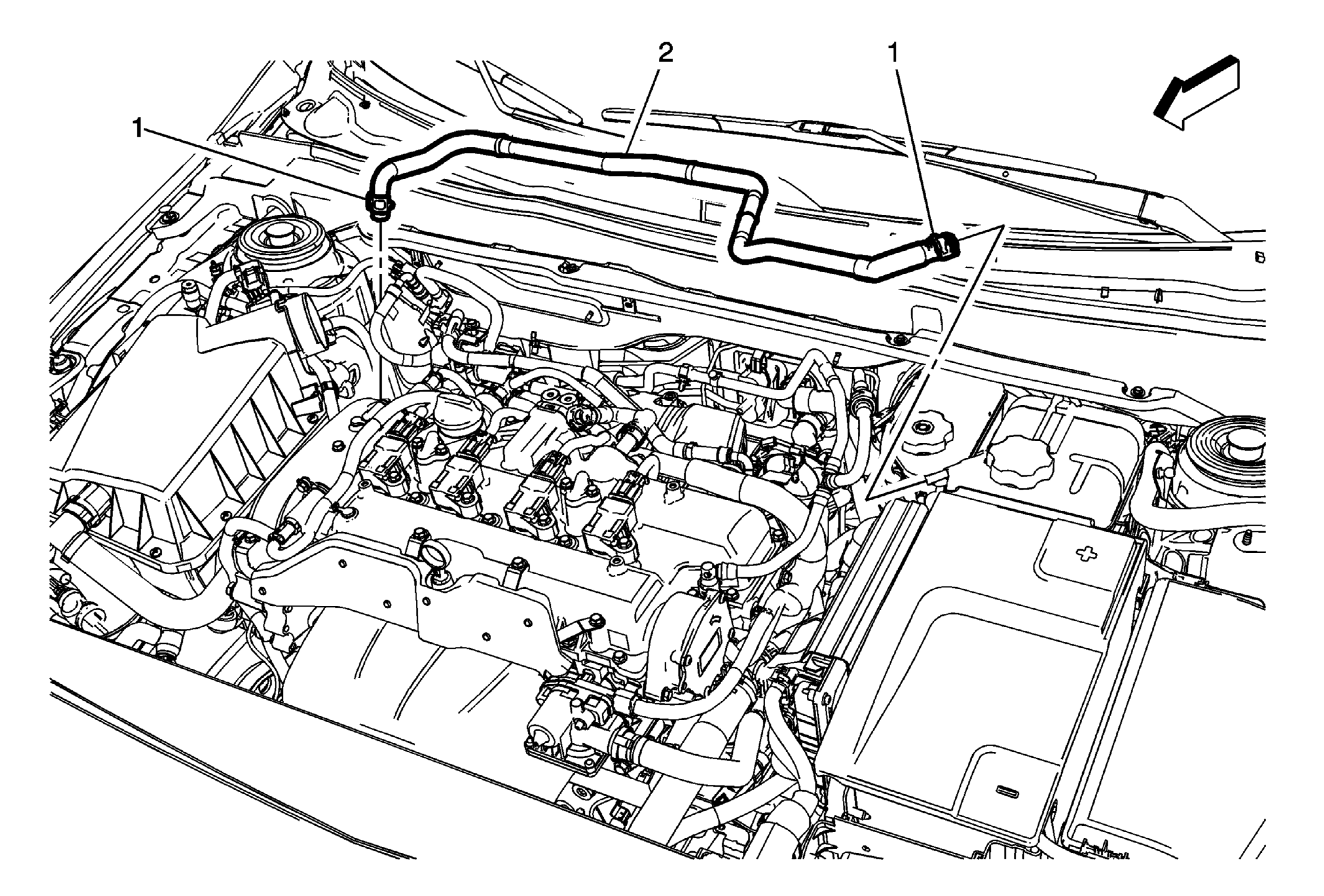

Fig 1: Radiator Surge Tank Inlet Hose & Clamps (LKW)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Drain the cooling system. Refer to Cooling System Draining and Filling (GE 47716) and Cooling System Draining and Filling (Static) . Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement (LKW) . Remove the air cleaner resonator and outlet duct. Refer to Air Cleaner Resonator and Outlet Duct Replacement (LKW) .
1	Radiator Surge Tank Inlet Hose Clamp (Qty: 2) Special Tools BO-38185 Hose Clamp Pliers For equivalent regional tools, refer to Special Tools .
2	Radiator Surge Tank Inlet Hose

Callout

Component Name

Preliminary Procedures

Radiator Surge Tank Inlet Hose Clamp (Qty: 2)
Special Tools
BO-38185 Hose Clamp Pliers
For equivalent regional tools, refer to Special Tools .

Radiator Surge Tank Inlet Hose
