Radiator Air Side Baffle and Deflector Replacement (Left LTG)

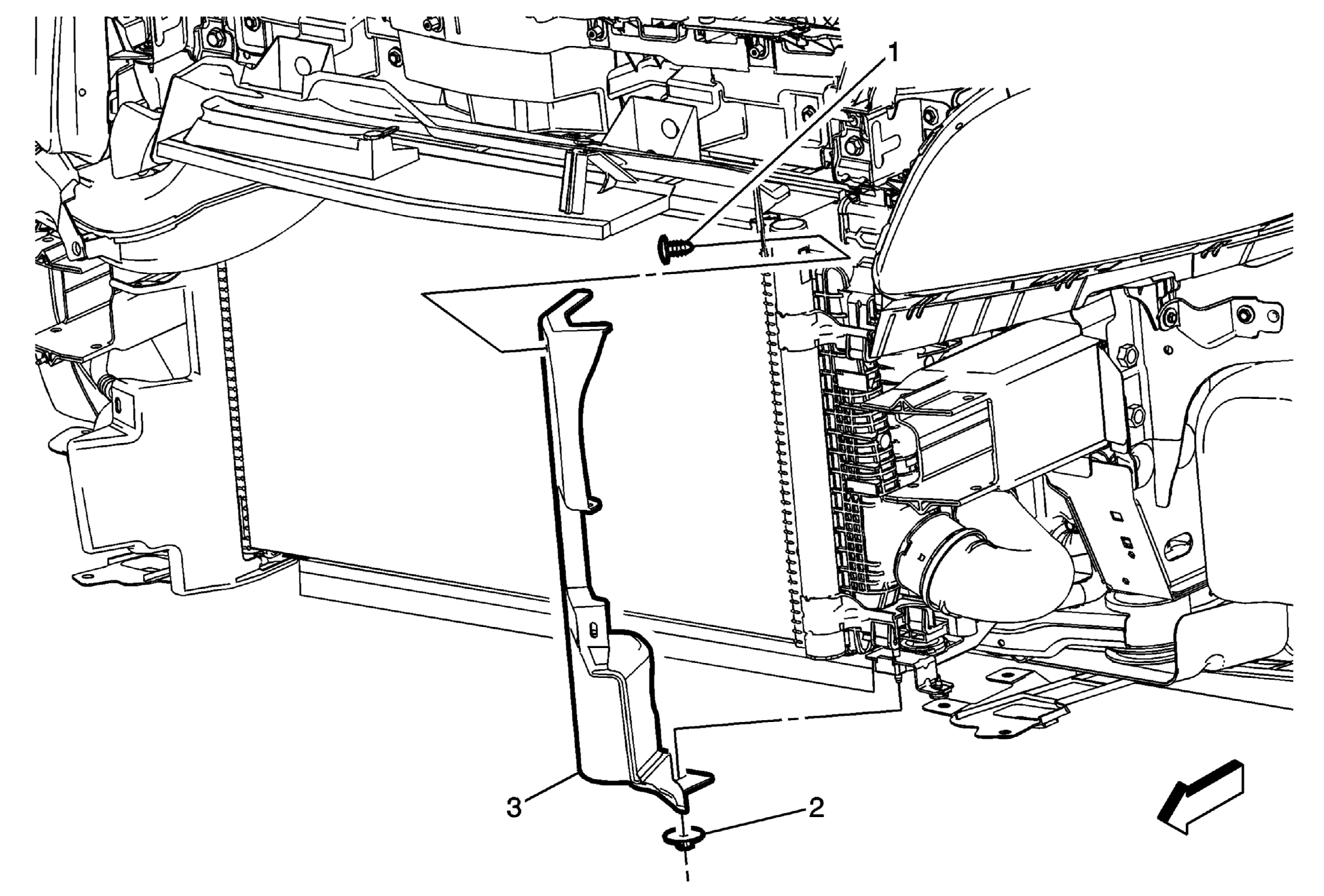

Fig 1: Radiator Air Side Baffle and Deflector (Left LTG)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Remove the front bumper impact bar. Refer to Front Bumper Impact Bar Replacement .
1	Radiator Air Side Baffle and Deflector Retainer
2	Radiator Air Side Baffle and Deflector Retainer
3	Radiator Air Side Baffle and Deflector Procedure  Remove the electrical harness anti rotation clip.
