Radiator Air Side Baffle and Deflector Replacement (Left LKW)

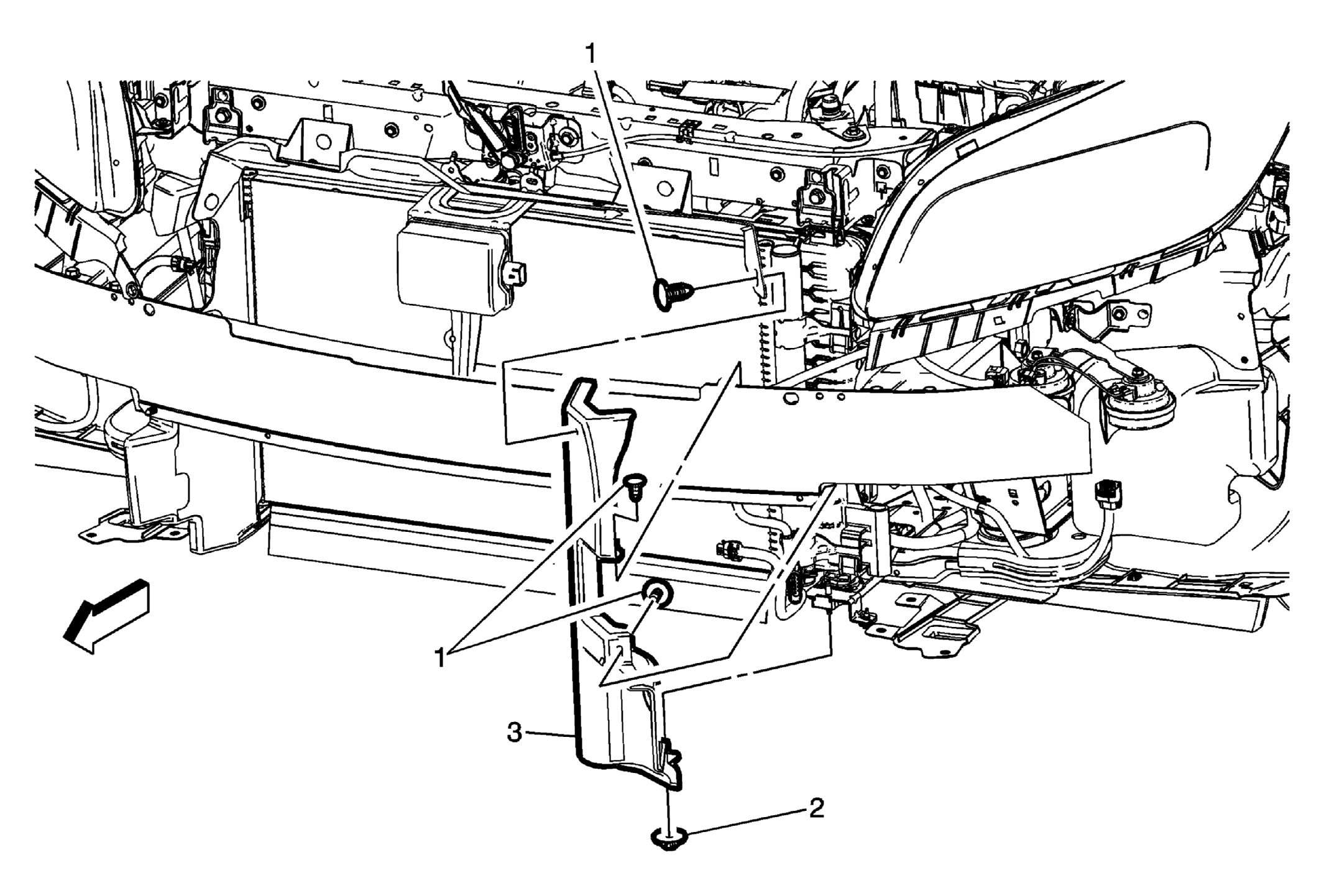

Fig 1: Radiator Air Side Baffle & Deflector (Left LKW)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
1	Radiator Air Side Baffle and Deflector Retainer (Qty: 3)
2	Radiator Air Side Baffle and Deflector Retainer CAUTION: Refer to Fastener Caution .
3	Radiator Air Side Baffle and Deflector Procedure  Remove the electrical wiring harness retaining clips from the radiator air side baffle and deflector.
