Engine Oil Pressure Sensor Replacement (LKW Camshaft Cover)

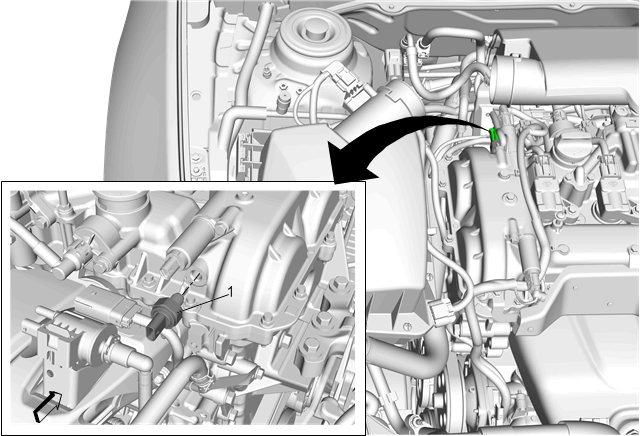

Fig 1: Engine Oil Pressure Sensor (LKW Camshaft Cover)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (LKW) .
1	Engine Oil Pressure Sensor CAUTION: Refer to Component Fastener Tightening Caution . Procedure  Disconnect the engine oil pressure sensor electrical connector. Tighten  35 N.m (26 lb ft)
