F2DA, F3DA, F8DA, F9DA, F10DA and F11DA Fuses, F12DA and F13DA Circuit Breakers

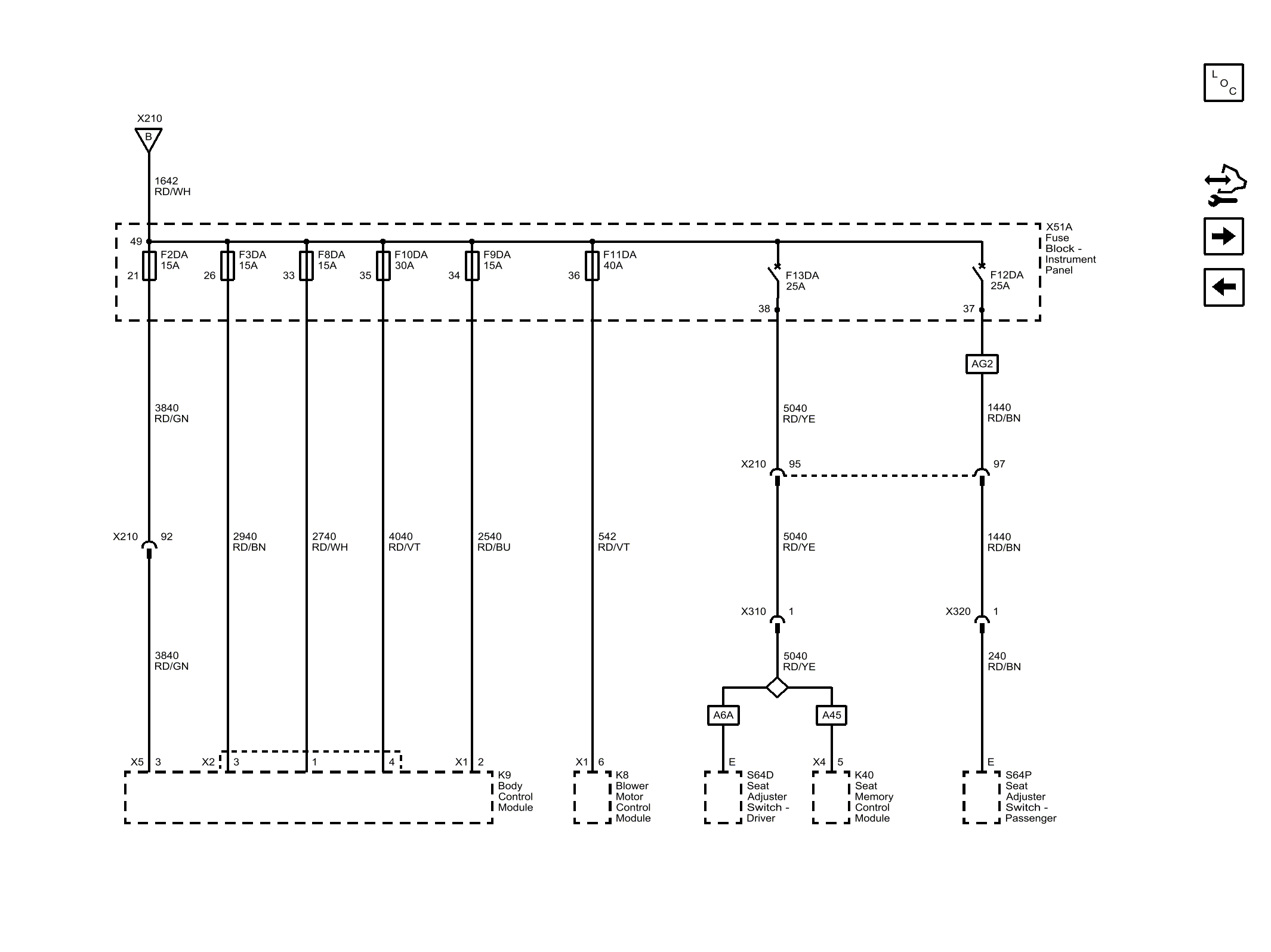

Fig 1: F2DA, F3DA, F8DA, F9DA, F10DA and F11DA Fuses, F12DA and F13DA Circuit Breakers

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
CAV_49	49
CAV_21	21
CAV_26	26
CAV_33	33
CAV_35	35
CAV_34	34
CAV_36	36
CAV_38	38
CAV_37	37
3840	Battery Positive Voltage
3840_RD/GN	3840 RD/GN
CAV_3	3
CONN_X5	X5
2940	Battery Positive Voltage
2940_RD/BN	2940 RD/BN
CAV_3	3
CONN_X2	X2
2740	Battery Positive Voltage
2740_RD/WH	2740 RD/WH
CAV_1	1
4040	Battery Positive Voltage
4040_RD/VT	4040 RD/VT
CAV_4	4
2540	Battery Positive Voltage
2540_RD/BU	2540 RD/BU
CAV_2	2
CONN_X1	X1
542	Battery Positive Voltage
542_RD/VT	542 RD/VT
CAV_6	6
CONN_X1	X1
5040	Battery Positive Voltage
5040_RD/YE	5040 RD/YE
CAV_E	E
5040_RD/YE	5040 RD/YE
CAV_5	5
CONN_X4	X4
3840_RD/GN	3840 RD/GN
1440	Battery Positive Voltage
1440_RD/BN	1440 RD/BN
240	Battery Positive Voltage
240_RD/BN	240 RD/BN
CAV_E	E
1440_RD/BN	1440 RD/BN
5040_RD/YE	5040 RD/YE
CAV_92	92
CAV_1	1
CAV_1	1
A45	MEMORY-SEAT ADJUSTER, MIRROR, POWER, DRIVER, PERSONALIZATION (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX))
A6A	ADJUSTER FRT ST-MANUAL, 4 WAY, PWR VERT, DRIVER (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX))
AG2	ADJUSTER PASS ST-POWER, MULTI-DIRECTIONAL (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX))
1642	Battery Positive Voltage
1642_RD/WH	1642 RD/WH
CONN_X210	X210
X210	X210
CAV_95	95
CAV_97	97
F2DA	F2DA 15A
F3DA	F3DA 15A
F8DA	F8DA 15A
F10DA	F10DA 30A
F9DA	F9DA 15A
F13DA	F13DA 25A
F12DA	F12DA 25A
F11DA	F11DA 40A
B_REF	B
X210	X210
X320	X320
X310	X310
X210	X210
X51A	X51A Fuse Block - Instrument Panel
K9	K9 Body Control Module
K8	K8 Blower Motor Control Module
S64P	S64P Seat Adjuster Switch - Passenger (AG2)
S64D	S64D Seat Adjuster Switch - Driver
K40	K40 Seat Memory Control Module (KA1 with A45)
