F26UA, F27UA, F29UA, F30UA, F32UA, F33UA, F34UA, F35UA, F36UA, F39UA, F41UA, F43UA and F69UA Fuses

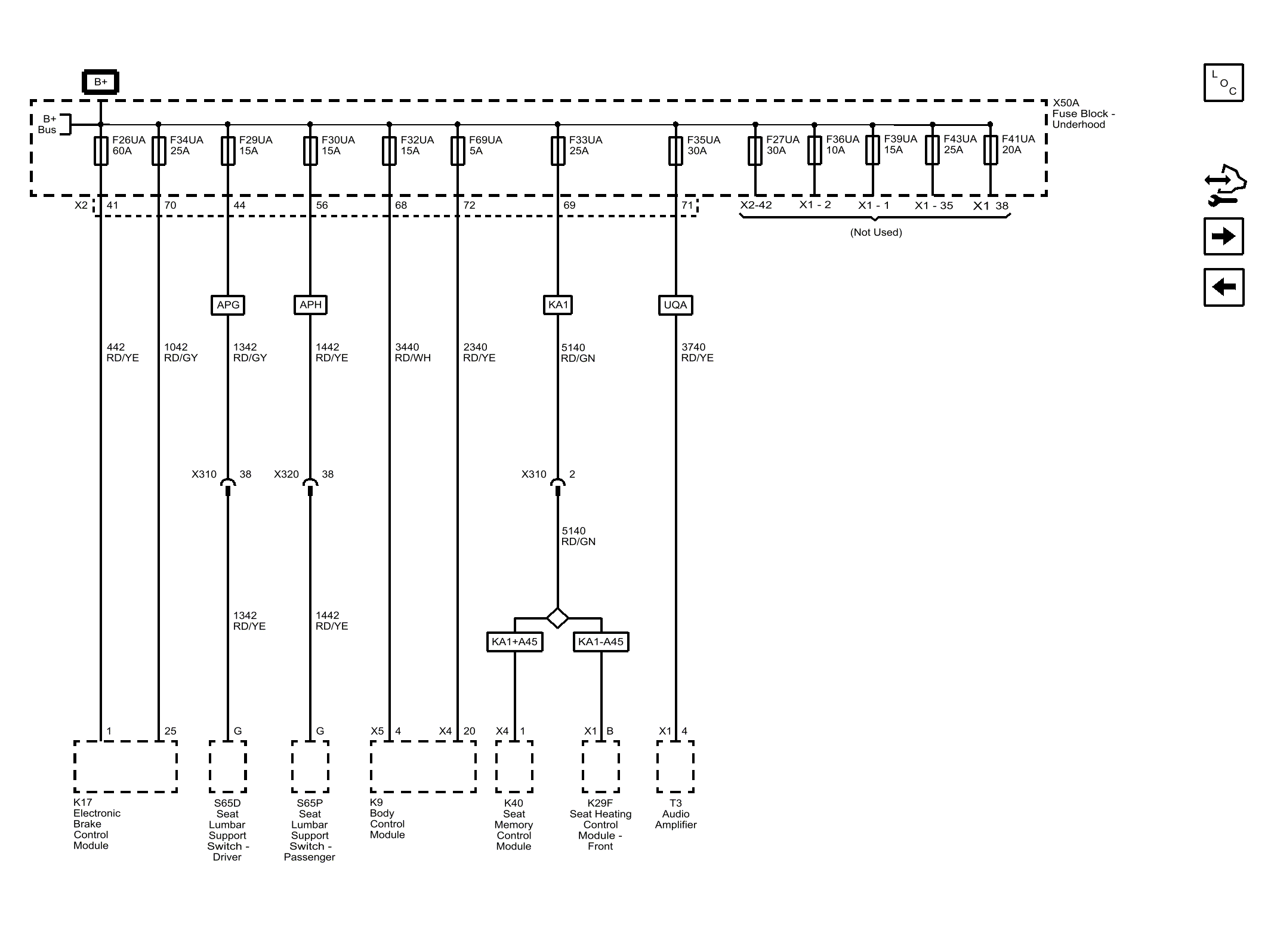

Fig 1: F26UA, F27UA, F29UA, F30UA, F32UA, F33UA, F34UA, F35UA, F36UA, F39UA, F41UA, F43UA and F69UA Fuses
| Callout | Component Name |
|---|---|
| 442 | Battery Positive Voltage |
| 442_RD/YE | 442 RD/YE |
| CAV_1 | 1 |
| 1042 | Battery Positive Voltage |
| 1042_RD/GY | 1042 RD/GY |
| CAV_25 | 25 |
| CAV_70 | 70 |
| 1342 | Battery Positive Voltage |
| 1342_RD/GY | 1342 RD/GY |
| CAV_44 | 44 |
| 1342_RD/YE | 1342 RD/YE |
| CAV_G | G |
| 1442 | Battery Positive Voltage |
| 1442_RD/YE | 1442 RD/YE |
| CAV_G | G |
| CAV_56 | 56 |
| 3440 | Battery Positive Voltage |
| 3440_RD/WH | 3440 RD/WH |
| CAV_4 | 4 |
| CONN_X5 | X5 |
| CAV_68 | 68 |
| 2340 | Battery Positive Voltage |
| 2340_RD/YE | 2340 RD/YE |
| CAV_20 | 20 |
| CONN_X4 | X4 |
| CAV_72 | 72 |
| 5740 | Battery Positive Voltage |
| CAV_1 | 1 |
| CONN_X4 | X4 |
| CAV_69 | 69 |
| CAV_B | B |
| CONN_X1 | X1 |
| 3740 | Battery Positive Voltage |
| 3740_RD/YE | 3740 RD/YE |
| CAV_4 | 4 |
| CONN_X1 | X1 |
| CAV_71 | 71 |
| 1442_RD/YE | 1442 RD/YE |
| KA1 | HEATER SEAT FRT-DRVR and PASS (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX)) |
| A45 | MEMORY-SEAT ADJUSTER, MIRROR, POWER, DRIVER, PERSONALIZATION (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX)) |
| CAV_2 | 2 |
| CAV_38 | 38 |
| CAV_38 | 38 |
| APG | CONTROL-SEAT, POWER LUMBAR, LH (DO NOT USE FOR NEXT NEW MAJOR) (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX)) |
| APH | CONTROL-SEAT, POWER LUMBAR, RH (DO NOT USE FOR NEXT NEW MAJOR) (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX)) |
| UQA | SPEAKER SYSTEM-PREMIUM AUDIO BRANDED WITH AMPLIFIER (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX)) |
| KA1 | HEATER SEAT FRT-DRVR and PASS (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX)) |
| KA1 | HEATER SEAT FRT-DRVR and PASS (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX)) |
| A45 | MEMORY-SEAT ADJUSTER, MIRROR, POWER, DRIVER, PERSONALIZATION (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX)) |
| 5140_RD/GN | 5140 RD/GN |
| 5140_RD/GN | 5140 RD/GN |
| CAV_41 | 41 |
| CONN_X2 | X2 |
| CAV_X2-42 | X2-42 |
| CAV_38 | 38 |
| CONN_X1 | X1 |
| F26UA | F26UA 60A |
| F34UA | F34UA 25A |
| F27UA | F27UA 30A |
| F29UA | F29UA 15A |
| F30UA | F30UA 15A |
| F32UA | F32UA 15A |
| F69UA | F69UA 5A |
| F33UA | F33UA 25A |
| F35UA | F35UA 30A |
| F36UA | F36UA 10A |
| F43UA | F43UA 25A |
| F41UA | F41UA 20A |
| X310 | X310 |
| X320 | X320 |
| X310 | X310 |
| F39UA | F39UA 15A |
| X50A | X50A Fuse Block - Underhood |
| K17 | K17 Electronic Brake Control Module |
| S65D | S65D Seat Lumbar Support Switch - Driver (APG) |
| S65P | S65P Seat Lumbar Support Switch - Passenger (APH) |
| T3 | T3 Audio Amplifier (UQA) |
| K9 | K9 Body Control Module |
| K40 | K40 Seat Memory Control Module (KA1 with A45) |
| K29F | K29F Seat Heating Control Module - Front (KA1 without A45) |
