Right Front of Passenger Compartment Harness Routing

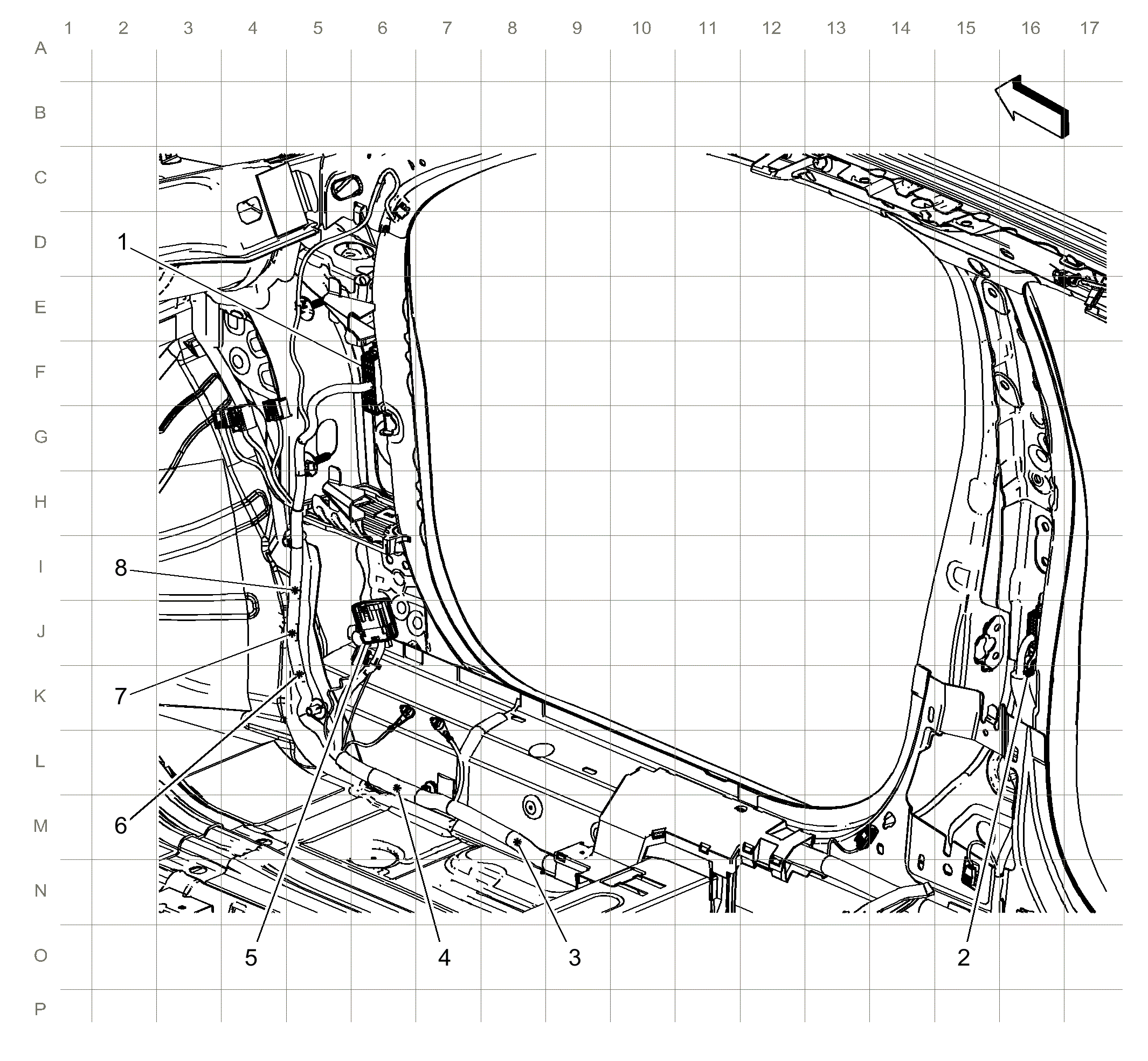

Fig 1: Right Front of Passenger Compartment Harness Routing
GM3708910Courtesy of GENERAL MOTORS COMPANY
Items
1:X600 X600 Passenger Door Harness to Body Harness
2:X800 X800 Right Rear Door Harness to Body Harness
3:J308
4:J302
5:X220 (UQA or UVC) X220 Instrument Panel Harness to Body Harness
6:J236
7:J209 (KTA or UPH)
8:J208 (KTA or UPH)
