Right Front of Engine Harness Routing (LKW)

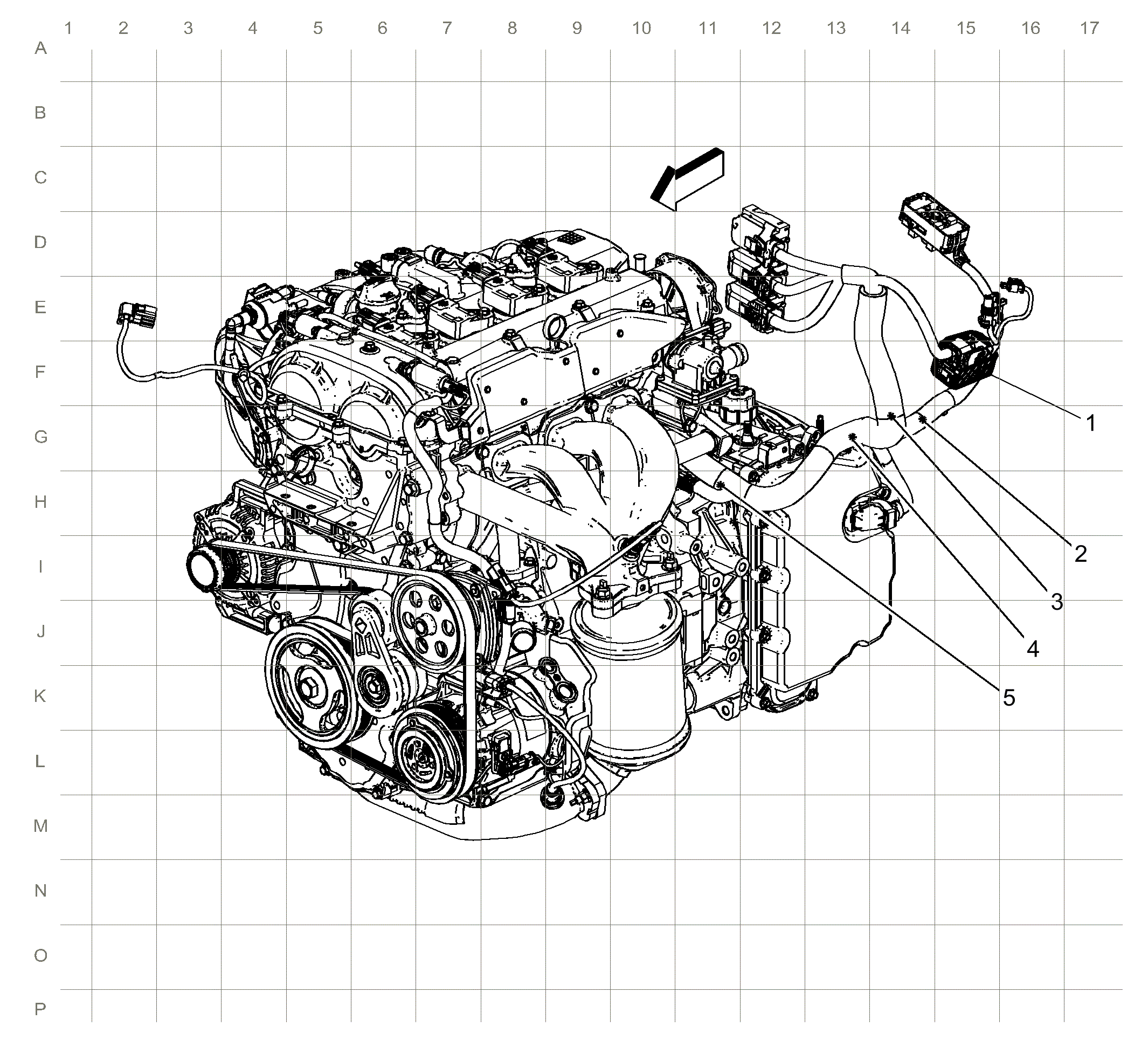

Fig 1: Right Front of Engine Harness Routing (LKW)
GM3708875Courtesy of GENERAL MOTORS COMPANY
Items
1:X115 X115 Engine Harness to Body Harness and X115 Engine Harness to Body Harness
2:J139 (KL9)
3:J112
4:J132 (T4A)
5:J121
