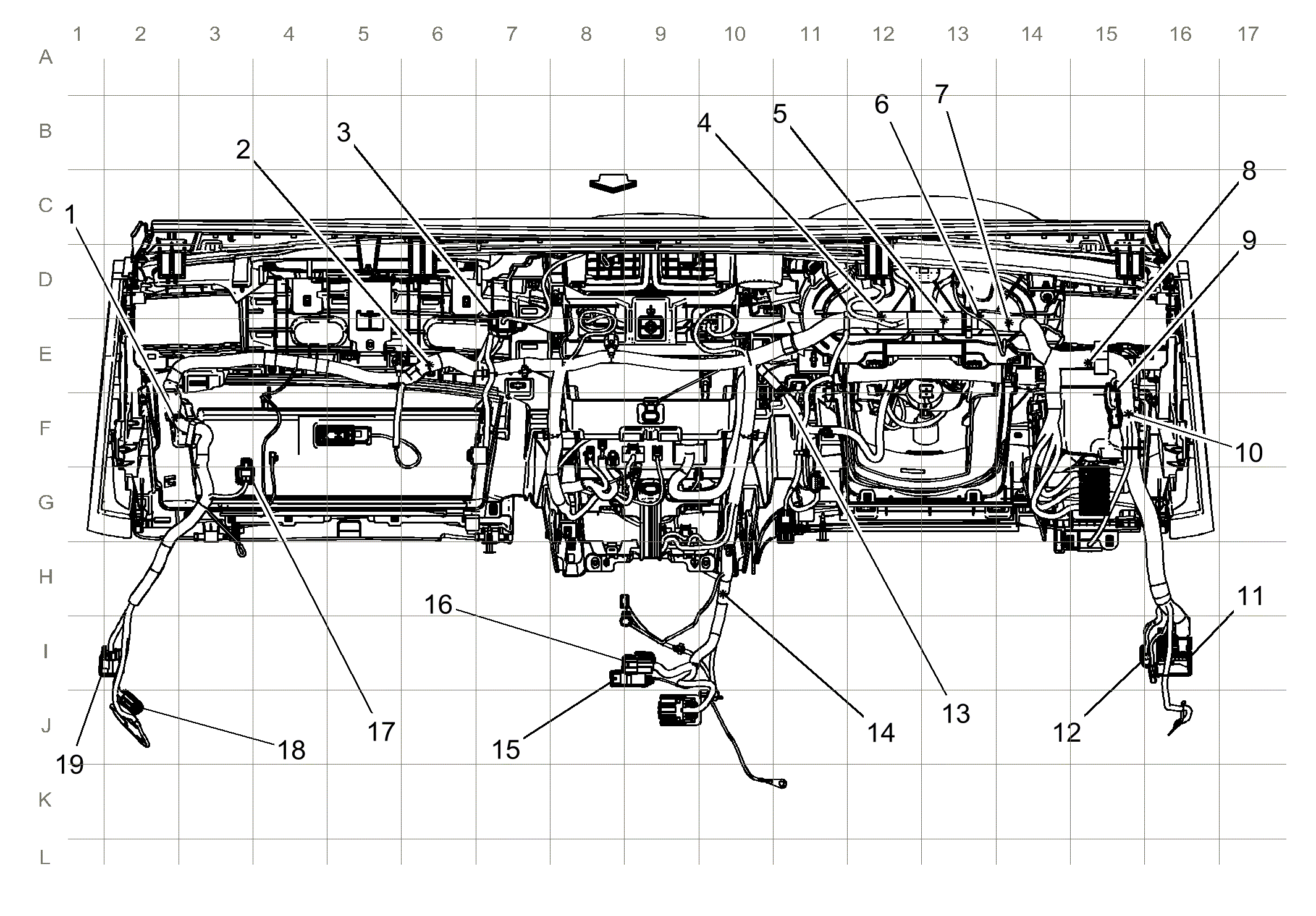

| 1:J202 |
| 2:J204 |
| 3:X215 X215 Center Instrument Panel Harness to Instrument Panel Harness |
| 4:J206 |
| 5:J211 |
| 6:J214 |
| 7:J207 |
| 8:J201 |
| 9:JX200 |
| 10:J203 |
| 11:X210 X210 Instrument Panel Harness to Body Harness |
| 12:X222 (U2K) X222 Body Harness COAX to Instrument Panel COAX (U2K with UHQ)
and X222 Body Harness COAX to Instrument Panel COAX (U2K without UHQ) |
| 13:J212 (T3U) |
| 14:J213 |
| 15:X301 X301 Floor Console Harness USB to Instrument Panel Harness USB |
| 16:X300 X300 Floor Console Harness to Instrument Panel Harness |
| 17:X205 X205 Instrument Panel Harness to Instrument Panel Air Bag Extension Harness |
| 18:X221 X221 Body Harness COAX to Instrument Panel COAX |
| 19:X220 (UQA or UVC) X220 Instrument Panel Harness to Body Harness |
