Left Rear of Engine Harness Routing (LTG)

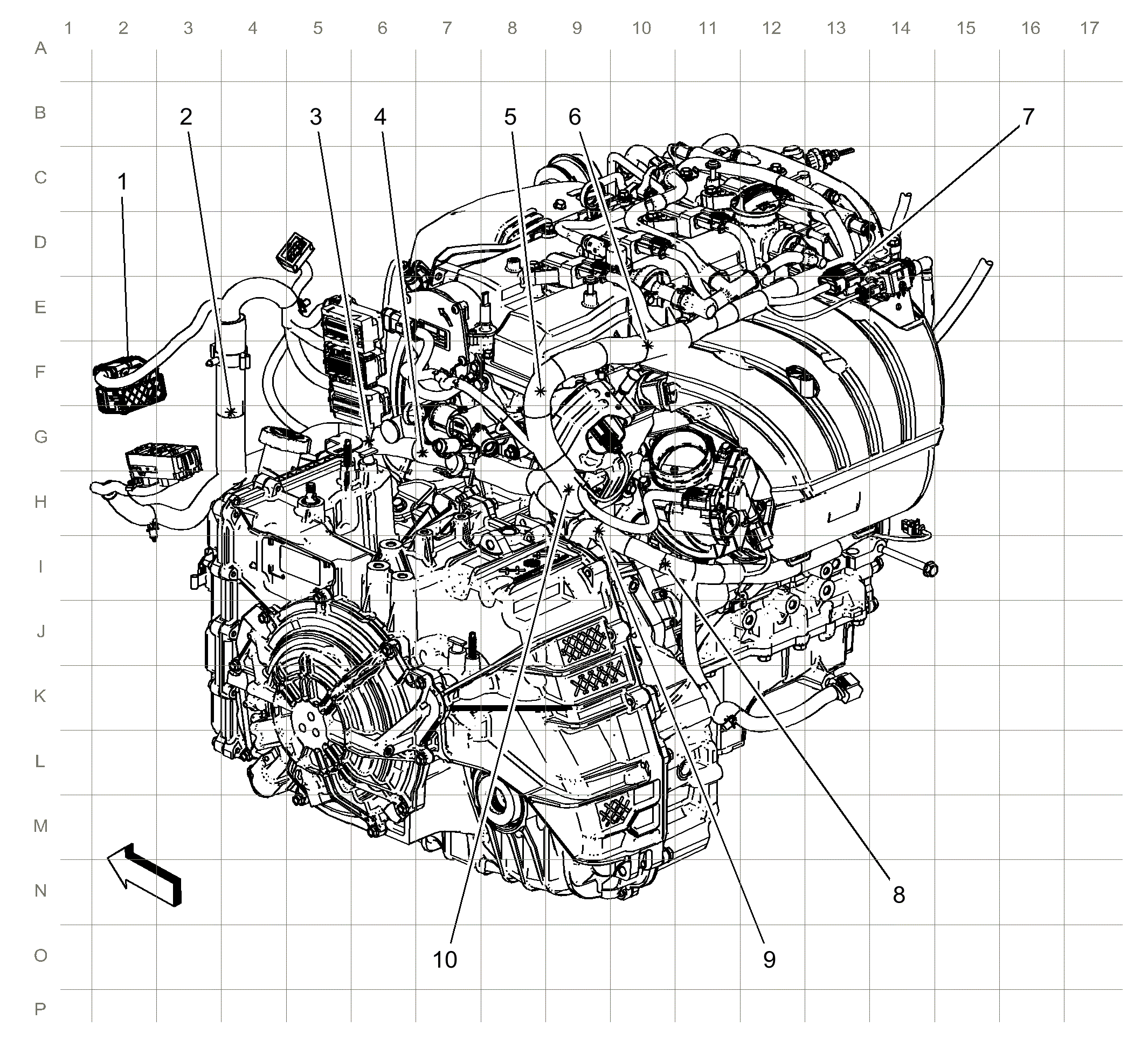

Fig 1: Left Rear of Engine Harness Routing (LTG)

Courtesy of GENERAL MOTORS COMPANY

Items
1:X115 X115 Engine Harness to Body Harness and X115 Engine Harness to Body Harness
2:J112
3:J121
4:J108
5:J103 (LKW or LTG)
6:J122
7:X160 (LKW or LTG) X160 Engine Harness to Fuel Rail Harness
8:J106 (LKW or LTG)
9:J120
10:J108
