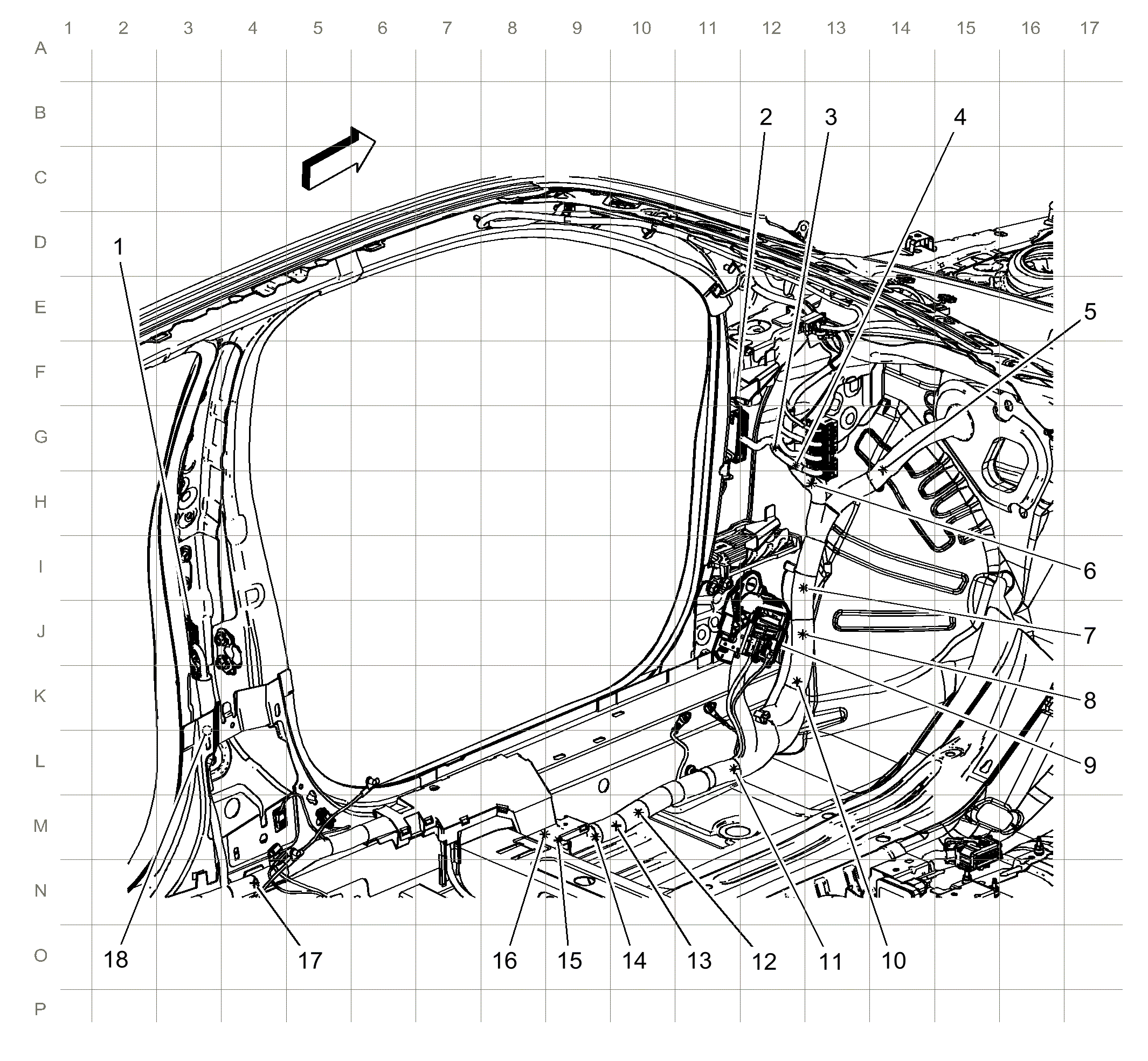

Left Front Of Passenger Compartment Harness Routing (1 Of 2)
| Items |
|---|
| 1:X700 X700 Left Rear Door Harness to Body Harness |
| 2:X500 X500 Driver Door Harness to Body Harness |
| 3:J223 (UQA) |
| 4:J231 |
| 5:J221 |
| 6:J232 |
| 7:J235 (CE1 with UD7) |
| 8:J219 |
| 9:X210 X210 Instrument Panel Harness to Body Harness |
| 10:J218 |
| 11:J233 |
| 12:J305 |
| 13:J304 |
| 14:J321 |
| 15:J329 |
| 16:J330 |
| 17:J339 (TSQ with 1LT, 2LT or 1LZ) |
| 18:J324 |
