Floor of Passenger Compartment Harness Routing

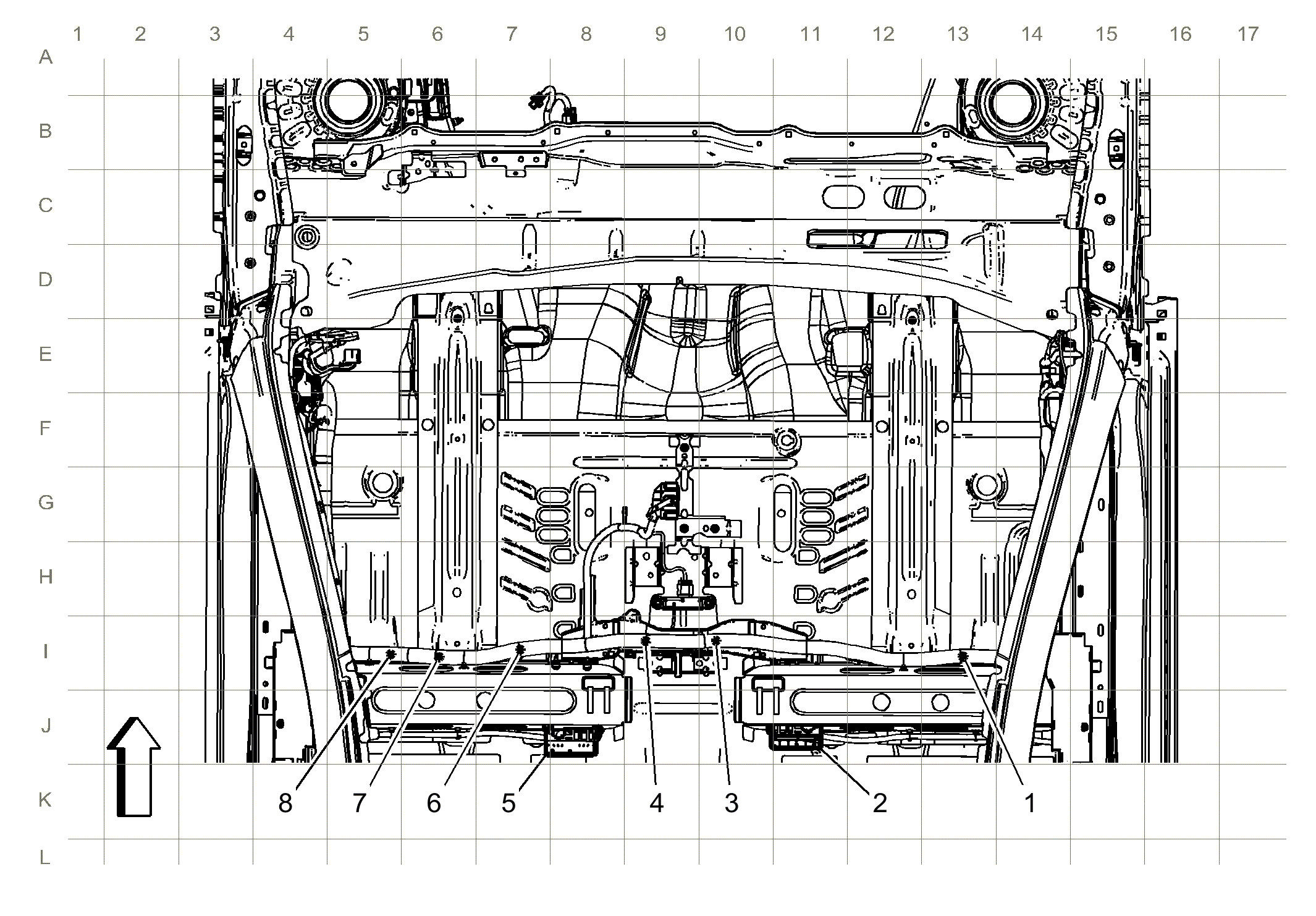

Fig 1: Floor of Passenger Compartment Harness Routing
GM3708907Courtesy of GENERAL MOTORS COMPANY
Items
1:J325
2:X320 X320 Body Harness to Passenger Seat Harness
3:J320
4:J317
5:X310 X310 Body Harness to Driver Seat Harness
6:J332 (A45)
7:J328
8:J319
