Ground Distribution Wiring Schematics: G102

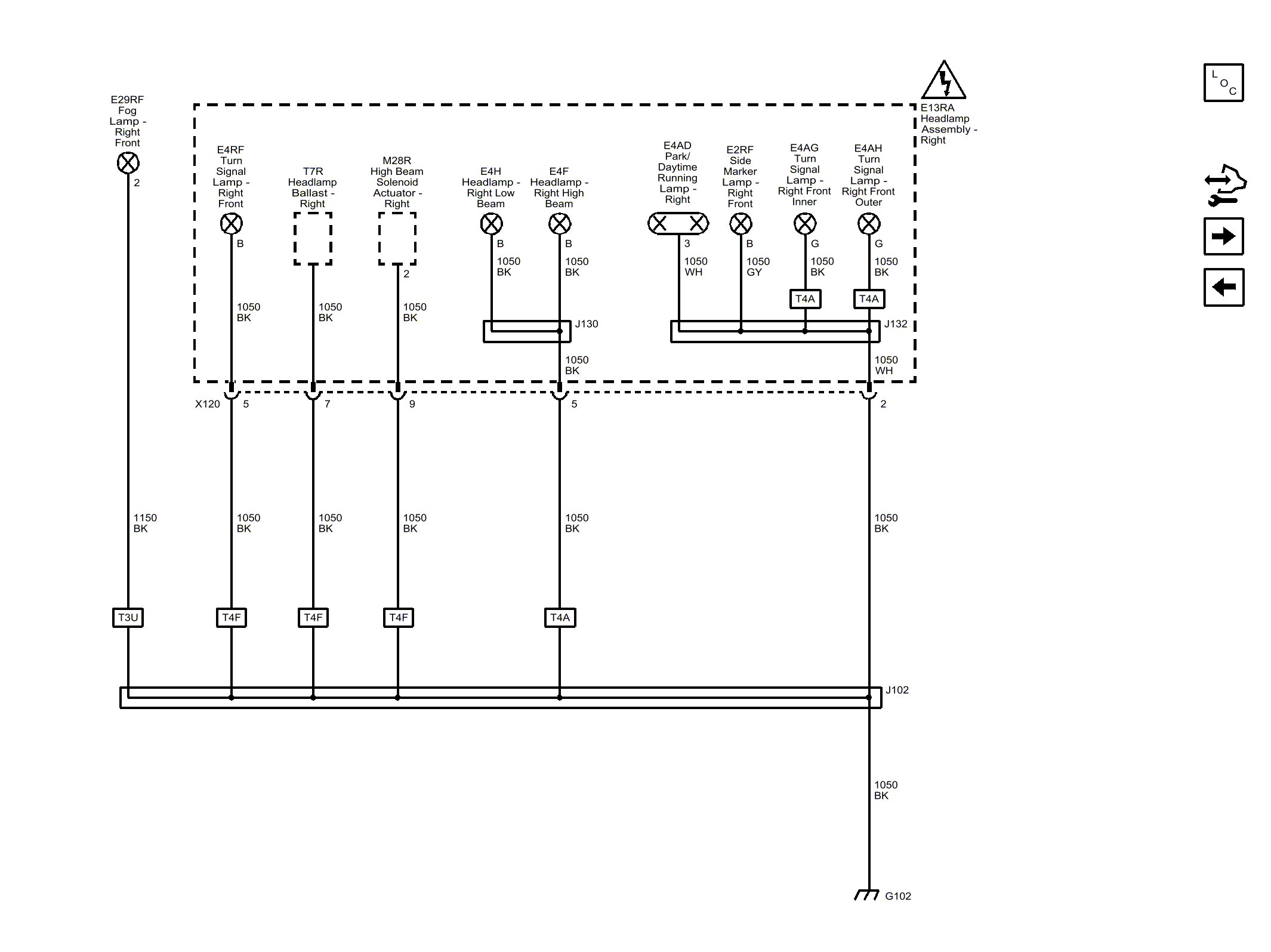

Fig 1: G102

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1150	Ground
1150_BK	1150 BK
CAV_2	2
1050	Ground
1050_BK	1050 BK
CAV_B	B
1050_BK	1050 BK
1050_BK	1050 BK
CAV_3	3
1050_BK	1050 BK
CAV_B	B
1050_BK	1050 BK
CAV_B	B
1050_BK	1050 BK
CAV_G	G
1050_BK	1050 BK
CAV_G	G
1050_BK	1050 BK
1050_BK	1050 BK
1050_BK	1050 BK
1050_BK	1050 BK
1050_BK	1050 BK
1050_BK	1050 BK
1050_WH	1050 WH
1050_BK	1050 BK
T4A	HEADLAMPS-HALOGEN (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX))
T4F	HEADLAMPS-HIGH INTENSITY DISCHARGE (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX))
T4F	HEADLAMPS-HIGH INTENSITY DISCHARGE (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX))
T4F	HEADLAMPS-HIGH INTENSITY DISCHARGE (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX))
1050_WH	1050 WH
CAV_B	B
1050_GY	1050 GY
CAV_2	2
T3U	LAMP FRT FOG-FRT FOG (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX))
T4A	HEADLAMPS-HALOGEN (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX))
T4A	HEADLAMPS-HALOGEN (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX))
X120	X120
CAV_7	7
CAV_9	9
CAV_5	5
CAV_5	5
CAV_2	2
G102	G102
J130	J130
J132	J132
J102	J102
X120	X120
E4RF	E4RF Turn Signal Lamp - Right Front (T4F)
T7R	T7R Headlamp Ballast - Right (T4F)
M28R	M28R High Beam Solenoid Actuator - Right (T4F)
E4H	E4H Headlamp - Right Low Beam
E4F	E4F Headlamp - Right High Beam (T4A)
E13RA	E13RA Headlamp Assembly - Right
E4AD	E4AD Park/Daytime Running Lamp - Right
E4AG	E4AG Turn Signal Lamp - Right Front Inner (T4A)
E4AH	E4AH Turn Signal Lamp - Right Front Outer (T4A)
E29RF	E29RF Fog Lamp - Right Front (T3U)
E2RF	E2RF Side Marker Lamp - Right Front
