Ambient Air Temperature Gauge Sensor Replacement (Without VRI)

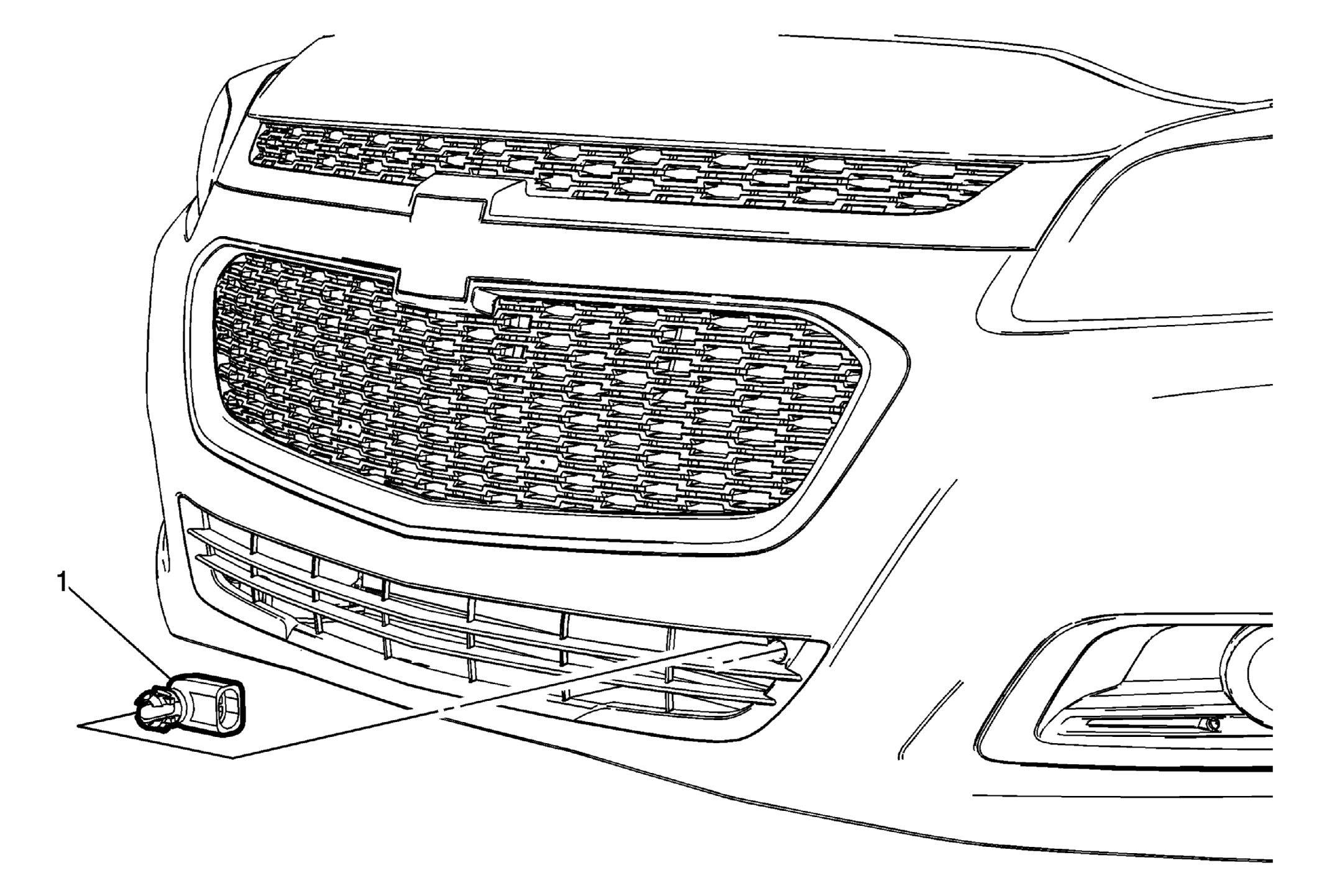

Fig 1: Ambient Air Temperature Gauge Sensor (Without VRI)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Ambient Air Temperature Gauge Sensor Procedures Squeeze the tabs on the ambient air temperature gauge sensor, and push ambient air temperature gauge sensor back out of the lower grille. Maneuver ambient temperature sensor forward out away from the lower grille and disconnect the electrical connector.

Callout

Component Name

Ambient Air Temperature Gauge Sensor

Procedures

Squeeze the tabs on the ambient air temperature gauge sensor, and push ambient air temperature gauge sensor back out of the lower grille.
Maneuver ambient temperature sensor forward out away from the lower grille and disconnect the electrical connector.
