Rear Seat Back Bolster Replacement

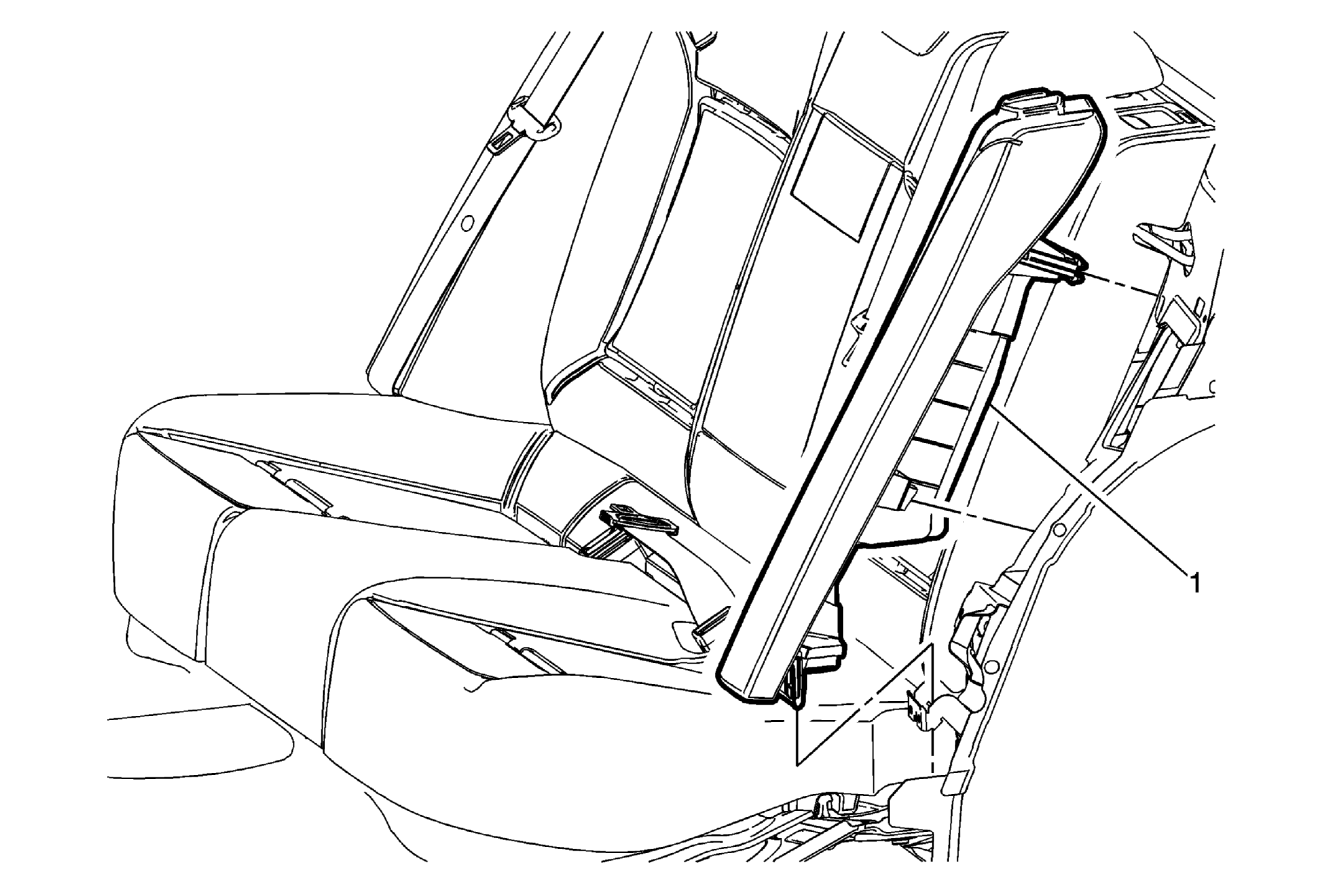

Fig 1: Rear Seat Back Bolster
GM2569243Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Seat Back Cushion Bolster
WARNING: Refer to SIR Warning .

Procedure

  1. Disable the SIR system. Refer to SIR Disabling and Enabling
  2. Fold rear seat back cushion down.
  3. Pull the upper area of the seat back cushion bolster forward.
  4. Use a suitable flat-bladed tool to release the retainer from the bolster's retaining bar.
  5. Pull the seat back cushion bolster up to remove it from the rear seat.
