Active Grille Air Shutter Wiring Schematics (VRI)

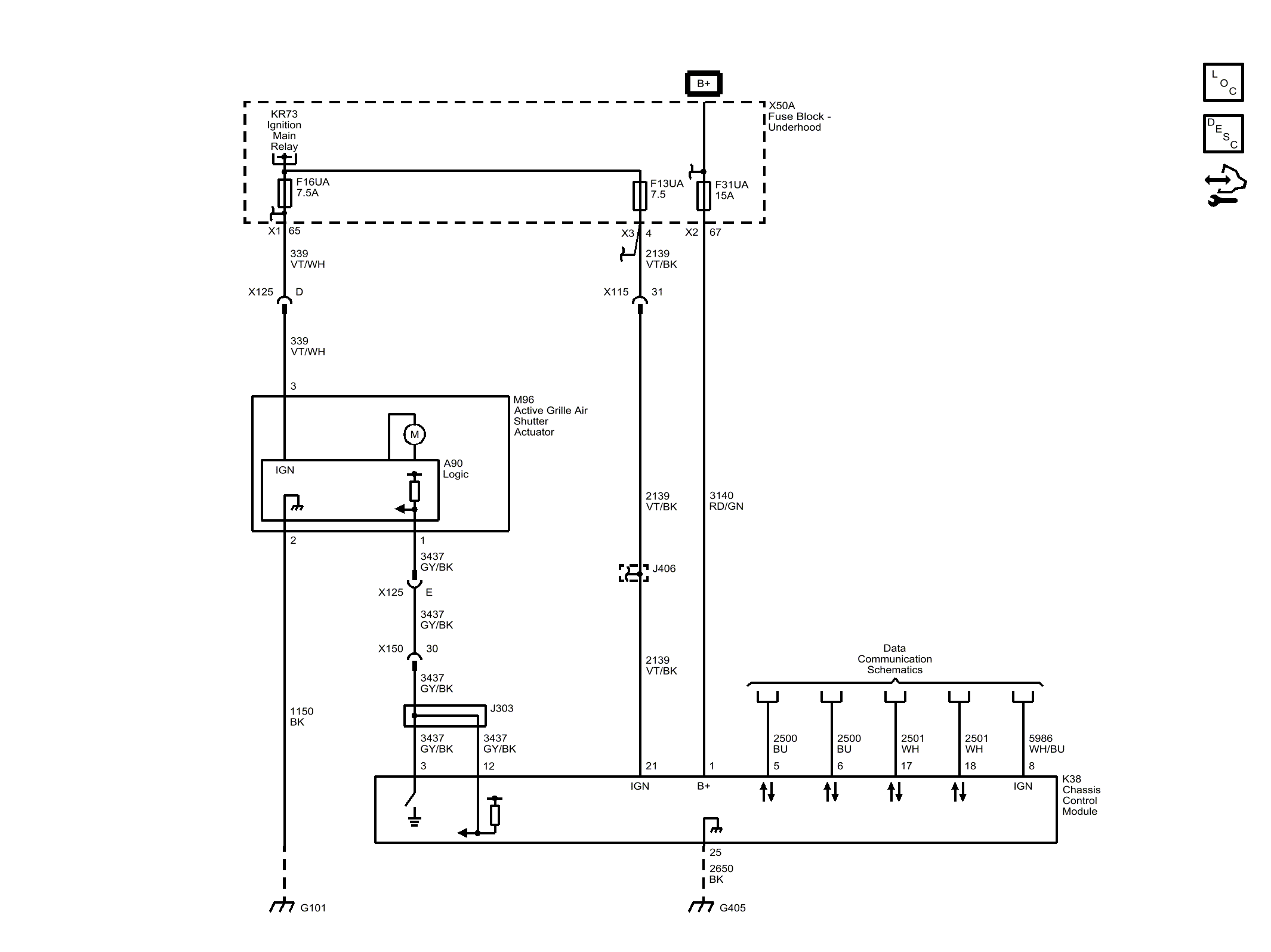

Fig 1: Active Grille Air Shutter Schematics (VRI)

GM3704274

Courtesy of GENERAL MOTORS COMPANY
