Rear Bumper Upper Fascia Replacement

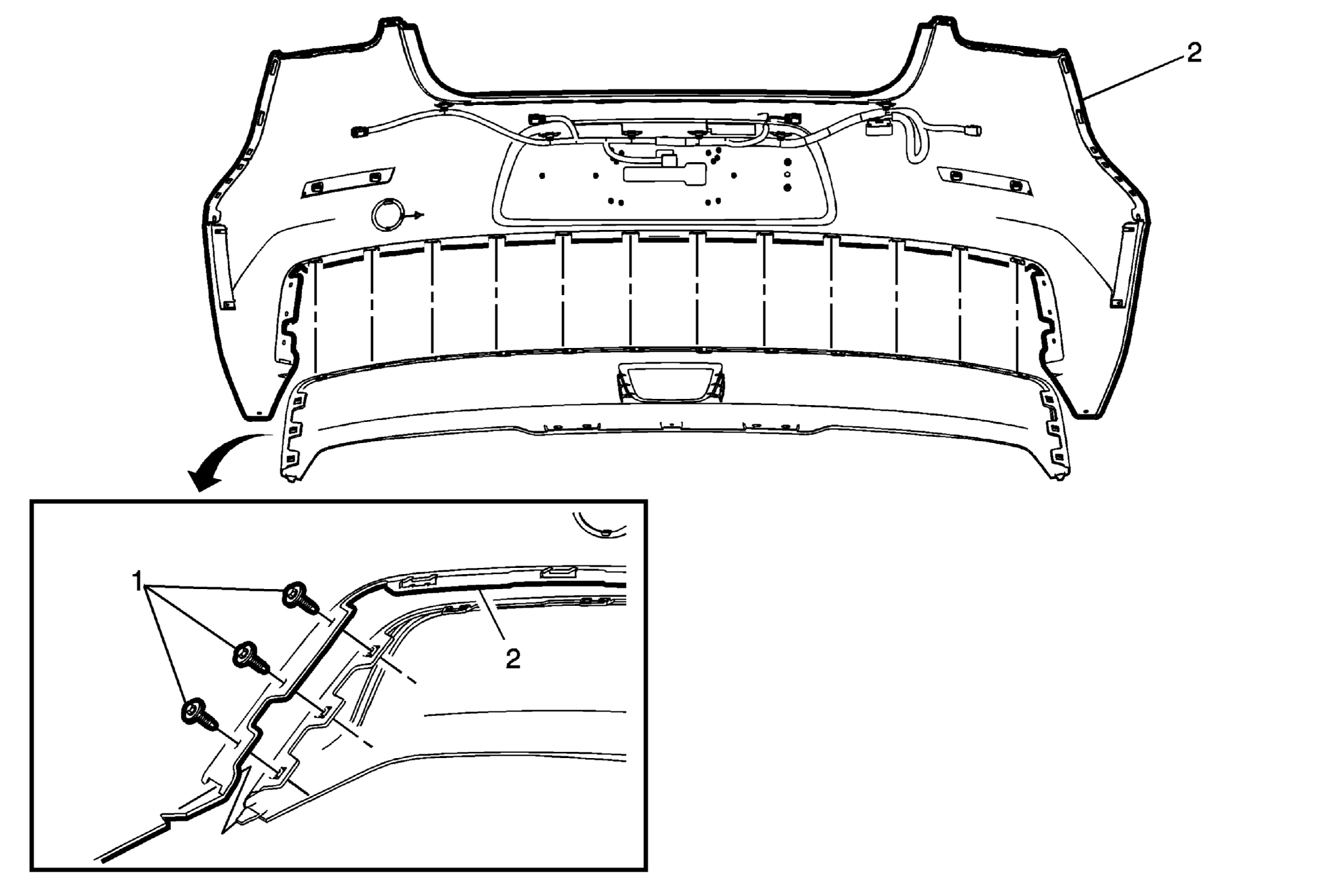

Fig 1: Rear Bumper Upper Fascia & Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .
1	Rear Bumper Upper Fascia Bolt (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
2	Rear Bumper Upper Fascia Procedure Carefully push a small nylon wedge between the upper fascia and the lower fascia. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the upper fascia from the lower fascia. Transfer part as necessary.

Callout

Component Name

Preliminary Procedure
Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .

Rear Bumper Upper Fascia Bolt (Qty: 6)

CAUTION: Refer to Fastener Caution .

Tighten
6 N.m (53 lb in)

Rear Bumper Upper Fascia

Procedure

Carefully push a small nylon wedge between the upper fascia and the lower fascia. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the upper fascia from the lower fascia.
Transfer part as necessary.
