Rear Bumper Lower Fascia Replacement

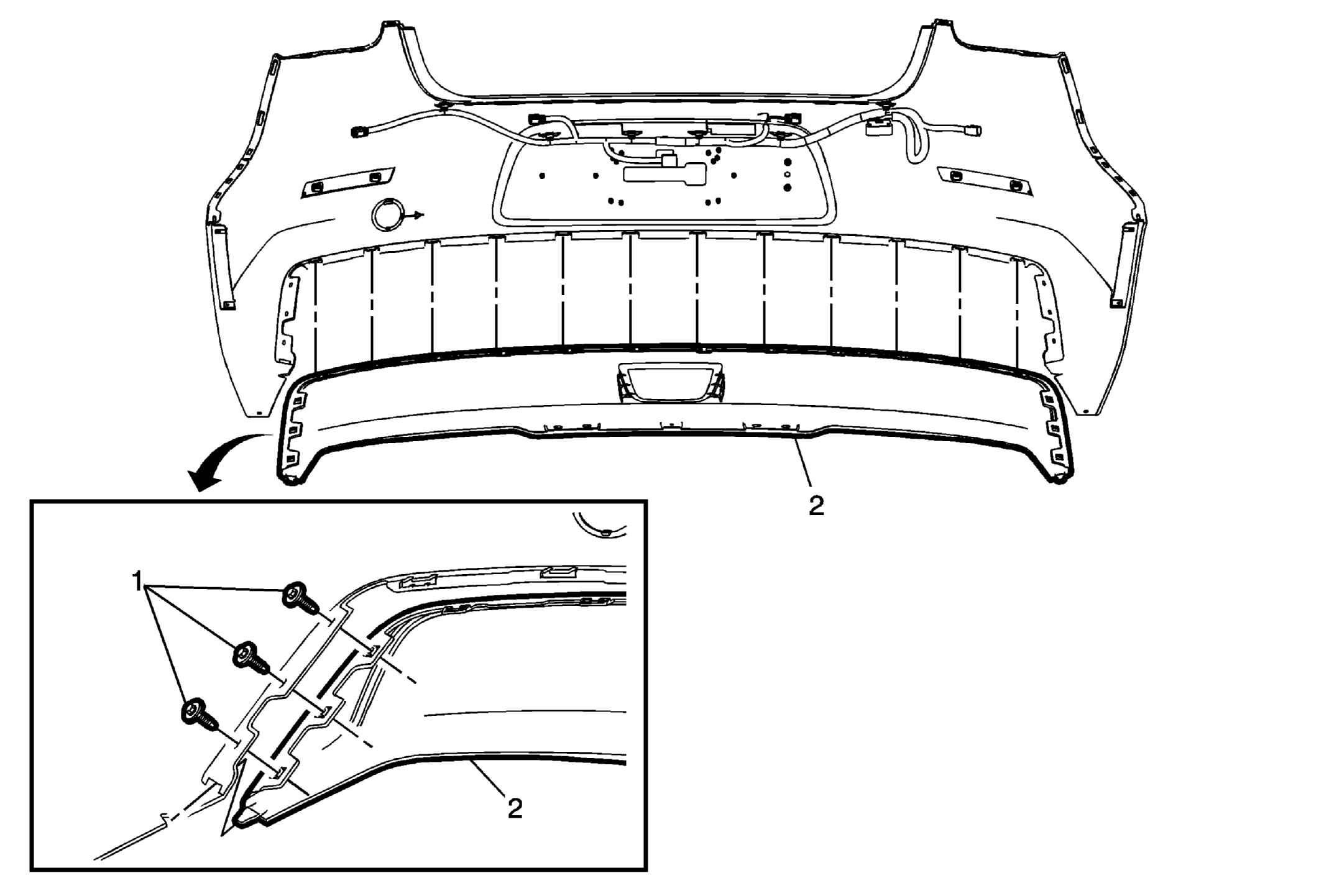

Fig 1: Rear Bumper Lower Fascia & Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .
1	Rear Bumper Lower Fascia Bolt (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Rear Bumper Lower Fascia Procedure Carefully push a small nylon wedge between the lower fascia and the lower fascia. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the lower fascia from the upper fascia. Transfer part as necessary.

Callout

Component Name

Preliminary Procedure
Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .

Rear Bumper Lower Fascia Bolt (Qty: 6)

CAUTION: Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Rear Bumper Lower Fascia

Procedure

Carefully push a small nylon wedge between the lower fascia and the lower fascia. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the lower fascia from the upper fascia.
Transfer part as necessary.
