Rear Bumper Impact Bar Replacement

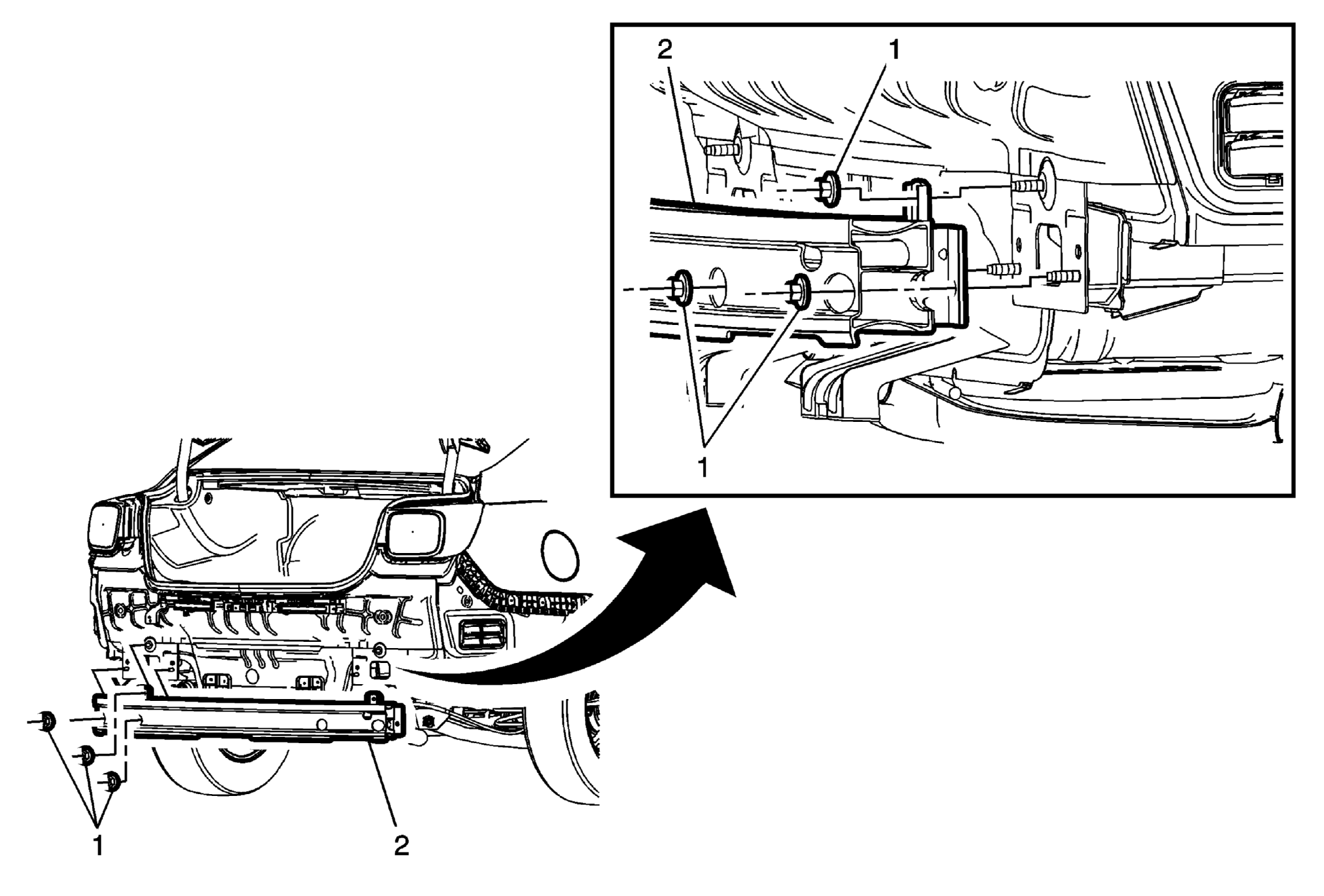

Fig 1: Rear Bumper Impact Bar & Mounting Nuts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .
1	Rear Bumper Impact Bar Nut (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten 40 N.m (30 lb ft)
2	Rear Bumper Impact Bar Procedure Transfer any parts as needed.
