Rear Bumper Fascia Reflector Replacement

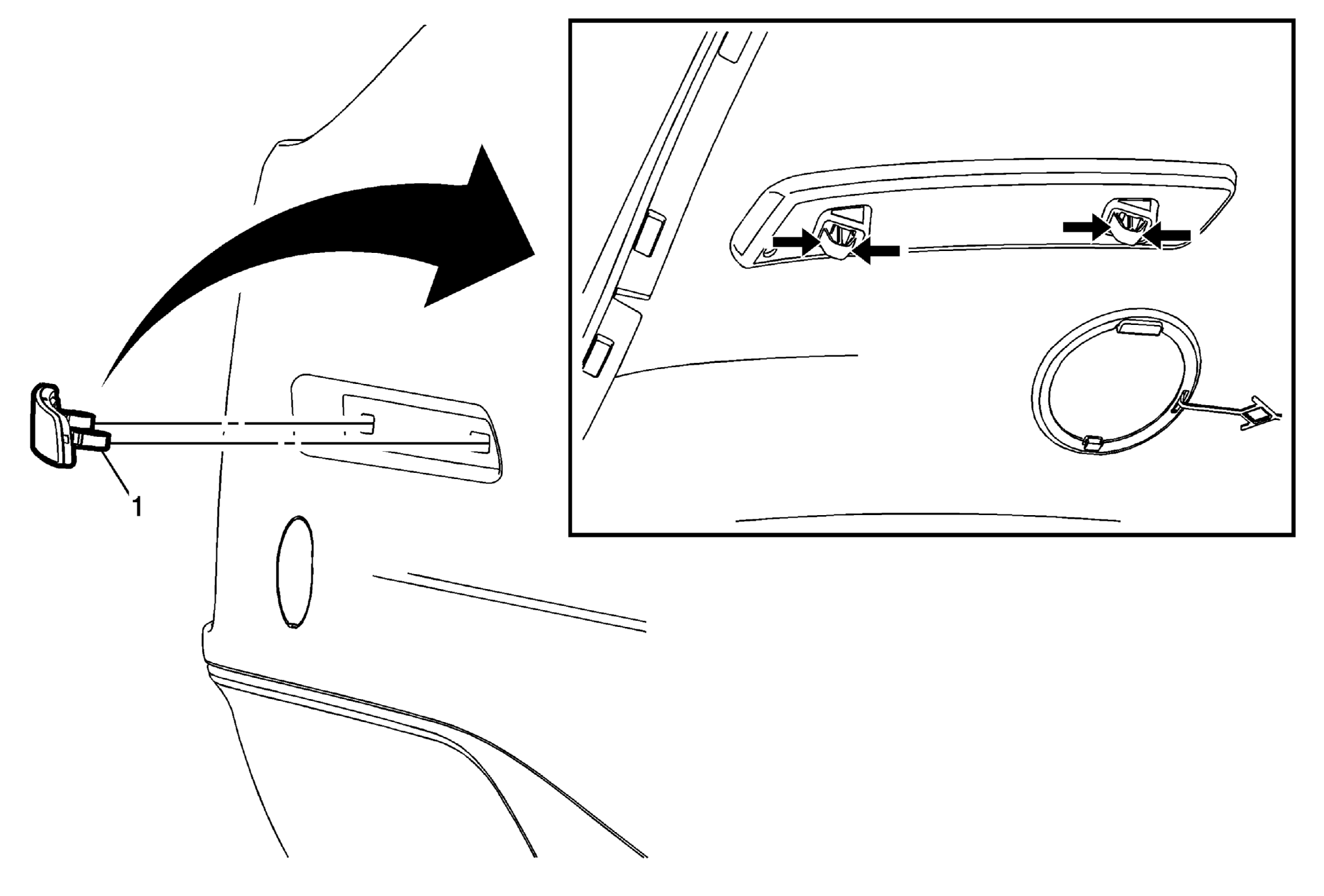

Fig 1: Rear Bumper Fascia Reflector

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
1	Rear Bumper Fascia Reflector Retainer Procedure  Compress the retainer tabs and press out from the rear bumper fascia. NOTE: Access the retaining tabs from underneath the vehicle.
