Rear Bumper Fascia Outer Support Replacement

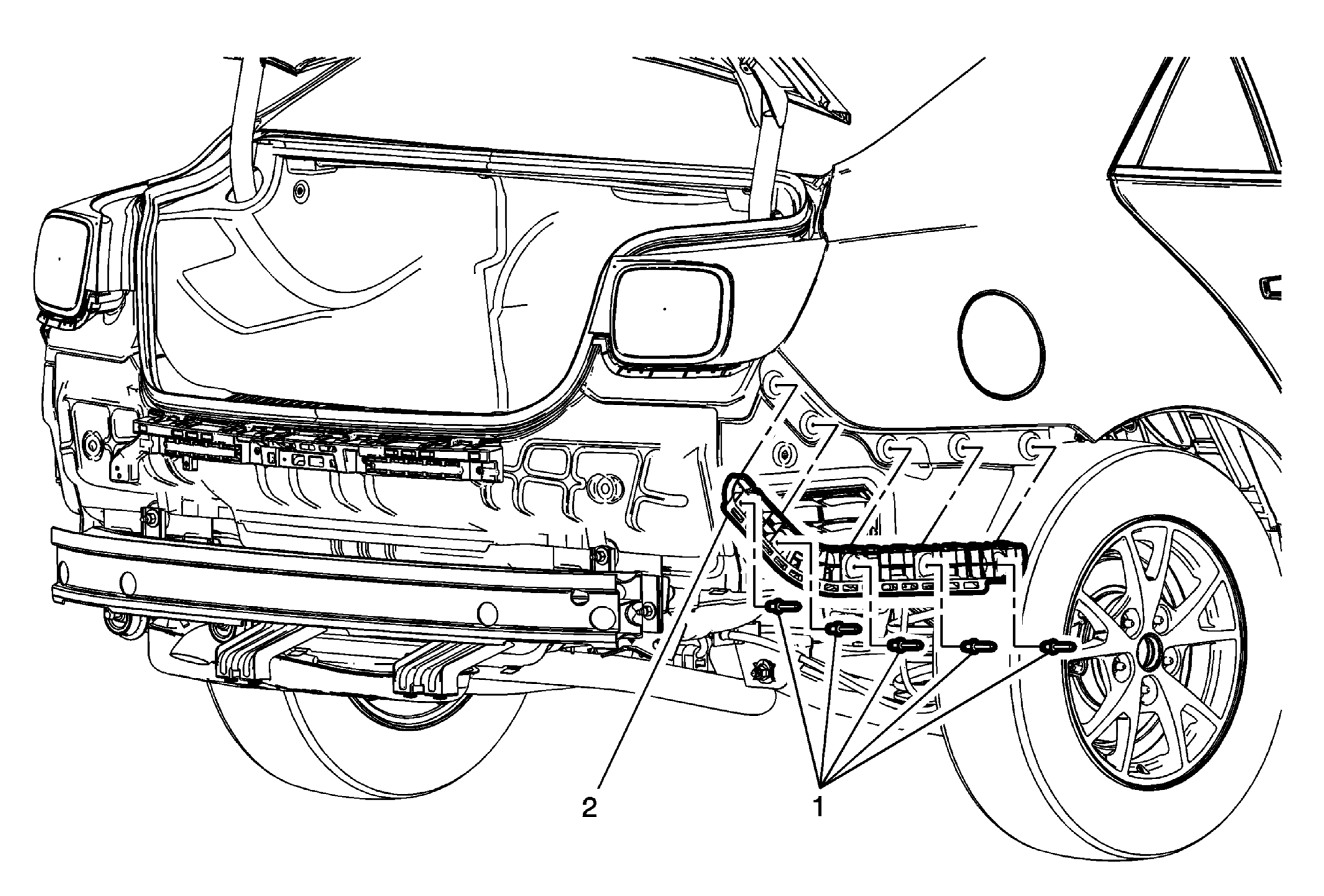

Fig 1: Rear Bumper Fascia Center Bracket & Rivets

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Eye Protection Warning . Preliminary Procedure Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .
1	Rear Bumper Fascia Outer Support Rivet (Qty: 5) Special Tools  BO-594-A  Hand Rivet Tongs For equivalent regional tools, refer to Special Tools .
2	Rear Bumper Fascia Outer Support
