Rear Bumper Fascia Lower Bracket Replacement

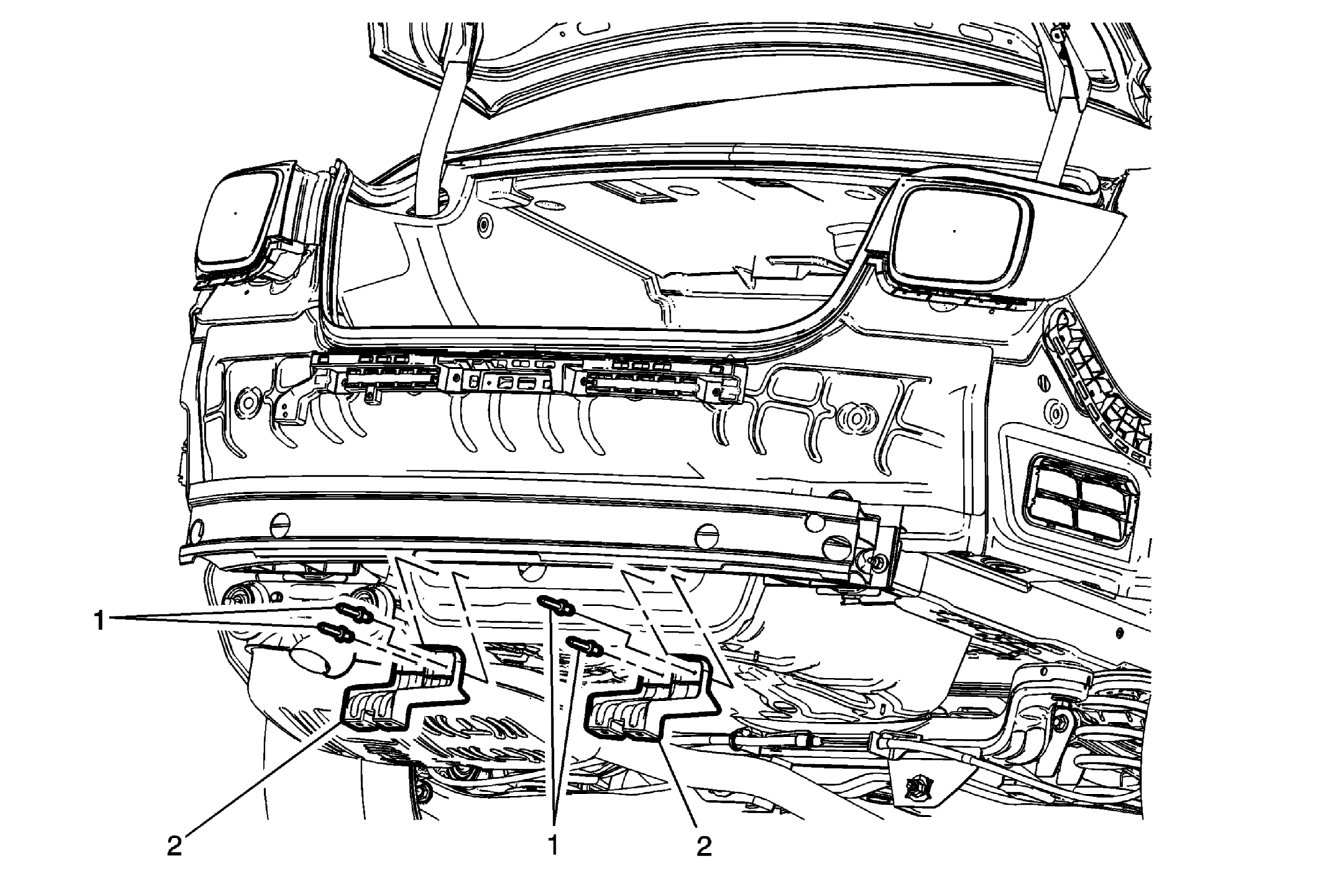

Fig 1: Rear Bumper Fascia Lower Bracket & Rivets

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .
1	Rear Bumper Fascia Lower Bracket Rivet (Qty: 4) Special Tools  BO-594-A  Hand Rivet Tongs For equivalent regional tools, refer to Special Tools .
2	Rear Bumper Fascia Lower Bracket
