Radiator Grille Lower Molding Replacement

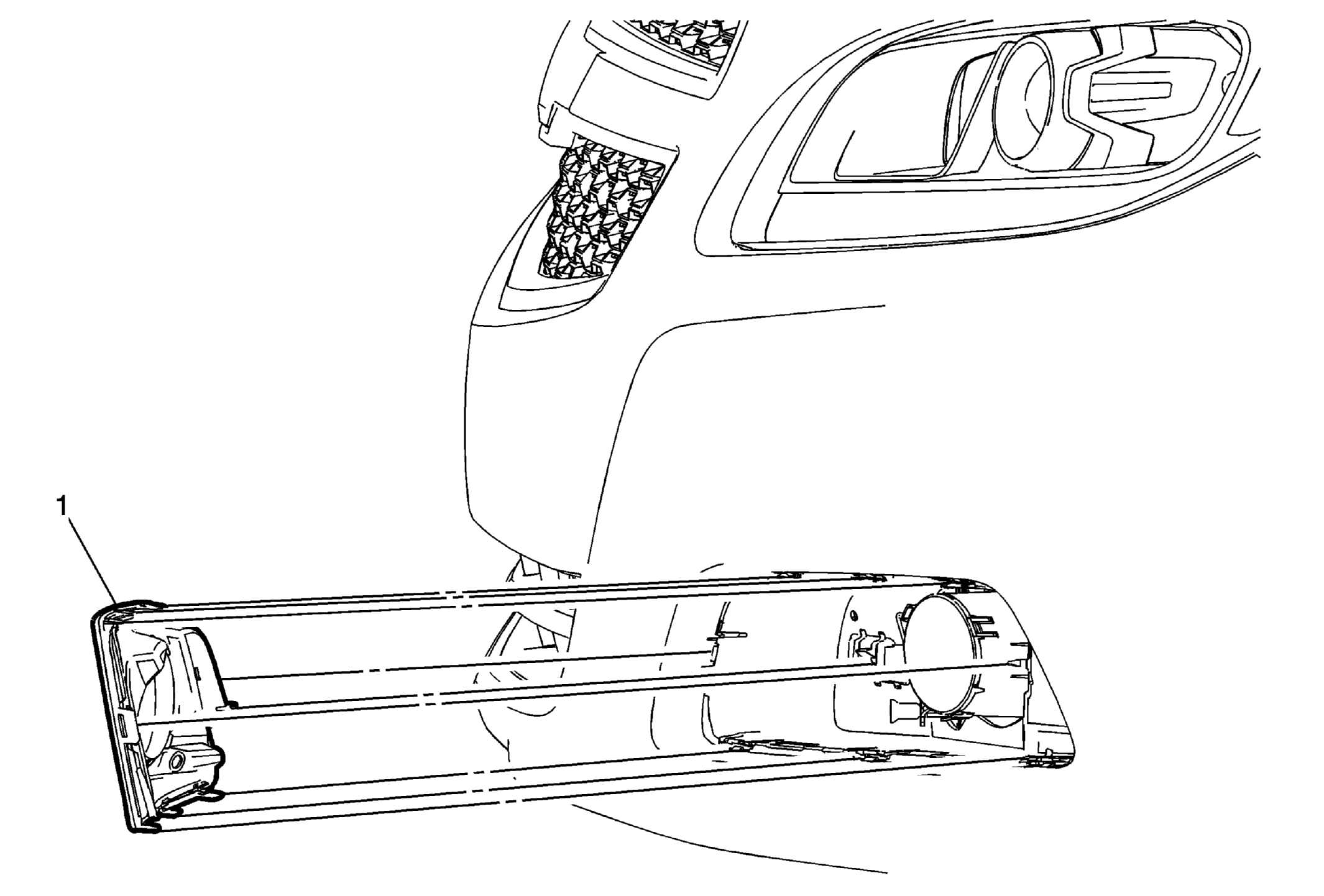

Fig 1: Radiator Grille Lower Molding

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
1	Radiator Grille Lower Molding Procedure  Release the tabs securing the radiator grille lower molding to the front bumper fascia.
