Front Bumper Lower Impact Bar Bracket Replacement (LKW, LUK)

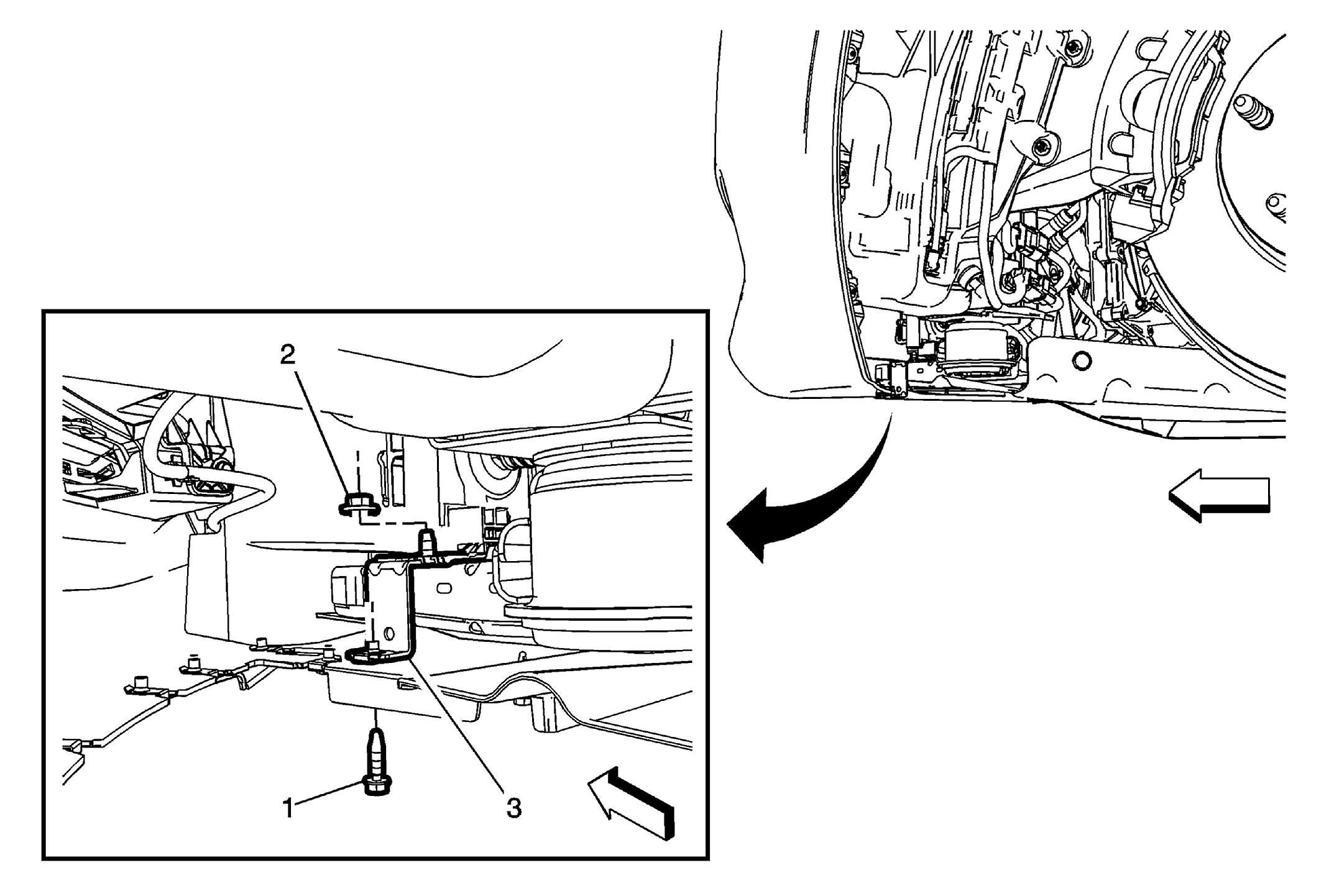

Fig 1: Front Bumper Lower Impact Bar Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove either the right front or left front wheelhouse liner. Refer to Front Wheelhouse Front Liner Replacement (Left Side) and Front Wheelhouse Front Liner Replacement (Right Side) .
1	Front Bumper Lower Impact Bar Bracket Bolt CAUTION: Refer to Fastener Caution .
2	Front Bumper Lower Impact Bar Bracket Nut Tighten  5 N.m (44 lb in)
3	Front Bumper Lower Impact Bar Bracket
